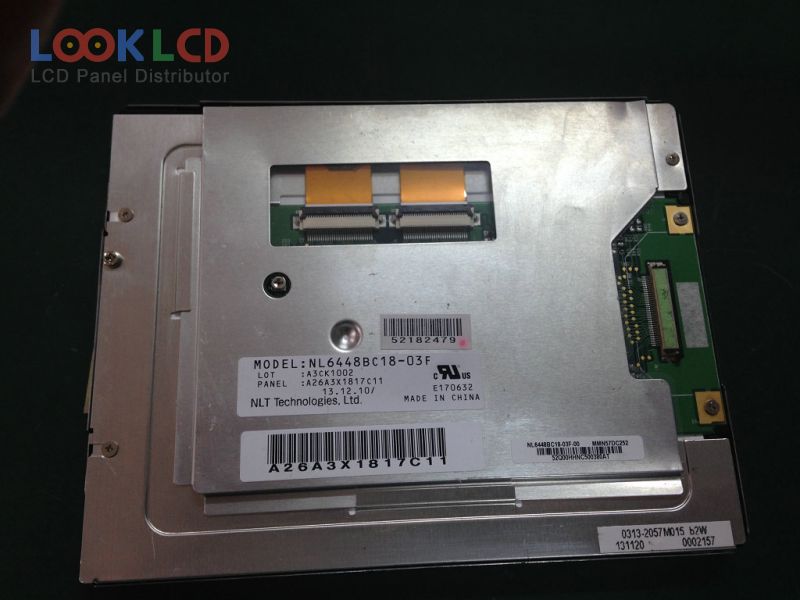

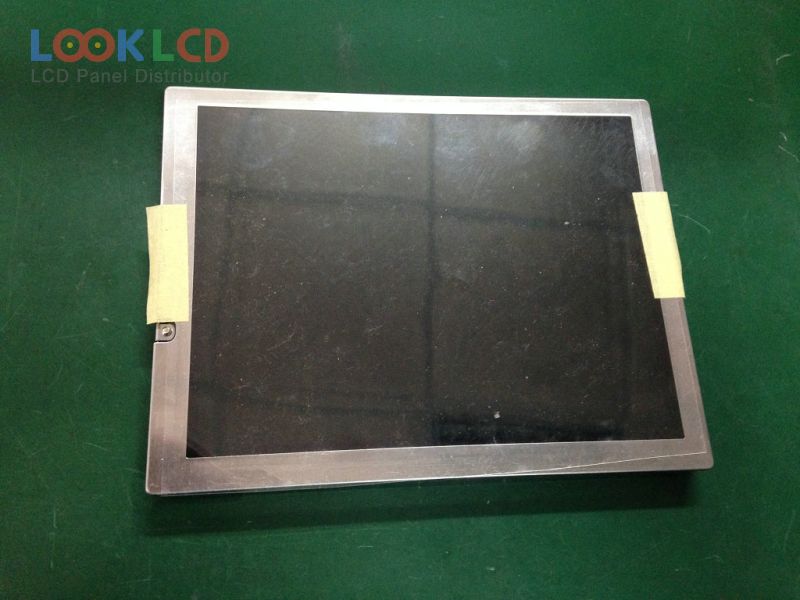

| Número de pieza | NL6448BC18-03F |
| Marca | NLT |
| Tamaño | 5.7 |
| Solicitud | IA |
| Resolución | 640×480 |
| Composición | LCM |
| Brillo | 800 |
| CR | 850:1 |
| Colores | 262K |
| Iluminar desde el fondo | WLED |
| Interfaz | TTL |
| marca de paneles | NEC |
| modelo de panel | NL6448BC18-03F 1 Compatible model |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 5.7 inch |
| resolución | 640(RGB)×480 , VGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 116.16×87.12 mm |
| describir | 135×104.6×10.9 mm |
| superficie | Clear, Hard coating (3H) |
| brillo | 800 cd/m² (Typ.) |
| relación de contraste | 850:1 (Typ.) |
| mostrar colores | 262K (6-bit), CIE193160% |
| tiempo de respuesta | 3/15 (Typ.)(Tr/Td) |
| ángulo de visión | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 9S2P×2CNWLEDWithout Driver |
| interfaz de señal | CMOS (1 ch, 6-bit), 33 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | IA |
