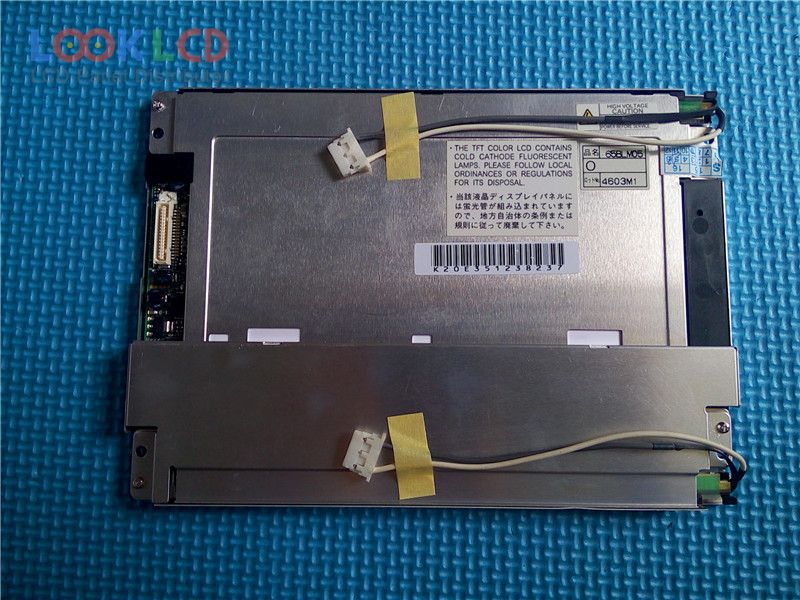

| Número de pieza | NL6448BC20-08 |
| Marca | NLT |
| Tamaño | 6.5 |
| Solicitud | IA |
| Resolución | 640×480 |
| Composición | LCM |
| Brillo | 300 |
| CR | 250:1 |
| Colores | 262K |
| Iluminar desde el fondo | CCFL |
| Interfaz | TTL |
| marca de paneles | NEC |
| modelo de panel | NL6448BC20-08 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 6.5 inch |
| resolución | 640(RGB)×480 , VGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 132.48×99.36 mm |
| describir | 178.8×126.8 mm |
| superficie | Antiglare (Haze 12%), Hard coating (2H) |
| brillo | 300 cd/m² (Typ.) |
| relación de contraste | 250:1 (Typ.) |
| mostrar colores | 262K (6-bit), CIE193142% |
| tiempo de respuesta | 13/36 (Typ.)(Tr/Td) |
| ángulo de visión | 50/50/35/45 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 2 pcsCCFLWithout Driver |
| interfaz de señal | CMOS (1 ch, 6-bit), 31 pins |
| voltaje de entrada | 3.3/5.0V (Typ.)(VCC) |
| solicitud | IA |
