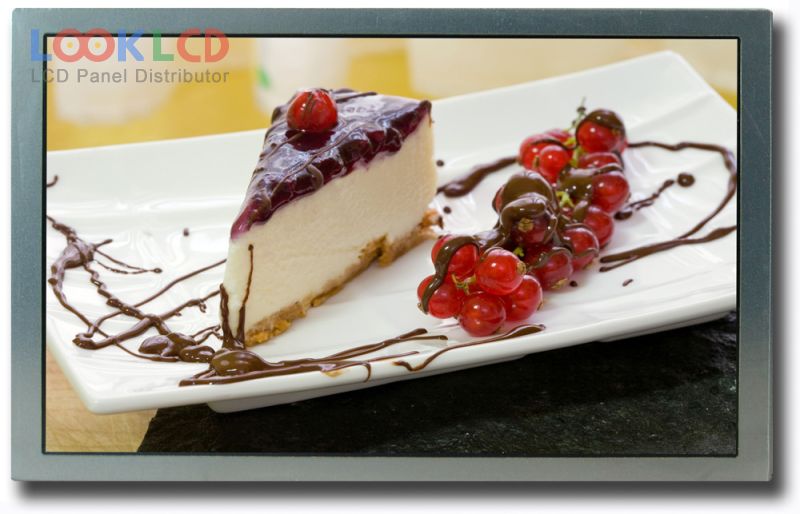

| Número de pieza | T-55561D090J-LW-A-AAN |
| Marca | Kyocera |
| Tamaño | 9.0 |
| Solicitud | IA |
| Resolución | 800×480 |
| Composición | LCM |
| Brillo | 400 |
| CR | 900:1 |
| Colores | 262K/16.7M |
| Iluminar desde el fondo | WLED |
| Interfaz | LVDS |
| marca de paneles | OPTREX |
| modelo de panel | T-55561D090J-LW-A-AAN 1 Compatible model |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 9.0 inch |
| resolución | 800(RGB)×480 , WVGA |
| modo de visualización | IPS, Normally Black, Transmissive |
| área activa | 196.8×118.08 mm |
| describir | 219×136.2 mm |
| superficie | Antiglare, Hard coating (3H) |
| brillo | 400 cd/m² (Typ.) |
| relación de contraste | 900:1 (Typ.) |
| mostrar colores | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193172% |
| tiempo de respuesta | 12/12 (Typ.)(Tr/Td) |
| ángulo de visión | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 7S2PWLEDWithout Driver |
| interfaz de señal | LVDS (1 ch, 6/8-bit), 20 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | IA |
