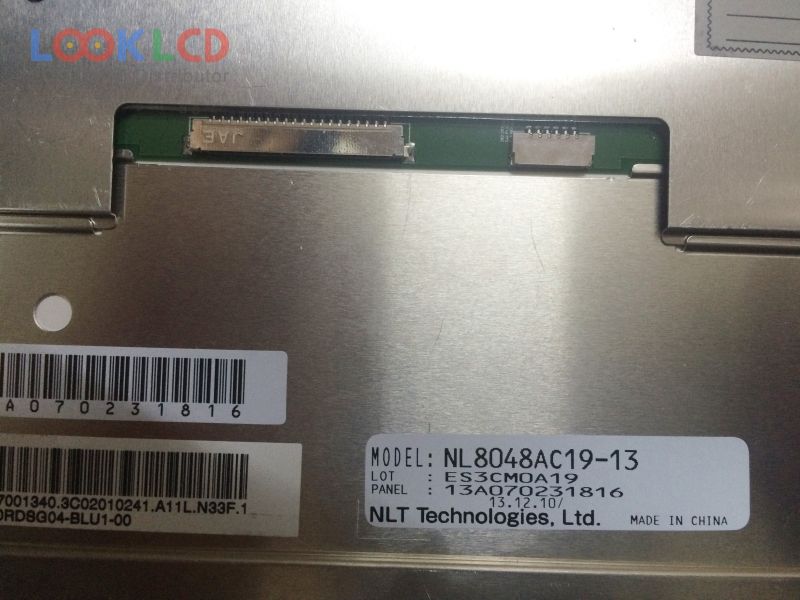

| Número de pieza | NL8048AC19-13 |
| Marca | NLT |
| Tamaño | 7.0 |
| Solicitud | IA |
| Resolución | 800×480 |
| Composición | LCM |
| Brillo | 500 |
| CR | 800:1 |
| Colores | 262K |
| Iluminar desde el fondo | WLED |
| Interfaz | LVDS |
| marca de paneles | NLT |
| modelo de panel | NL8048AC19-13 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 7.0 inch |
| resolución | 800(RGB)×480 , WVGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 152.4×91.44 mm |
| describir | 170×111×9 mm |
| superficie | Clear, Hard coating (3H) |
| brillo | 500 cd/m² (Typ.) |
| relación de contraste | 800:1 (Typ.) |
| mostrar colores | 262K (6-bit), CIE193160% |
| tiempo de respuesta | 8 (Typ.)(Tr+Td) |
| ángulo de visión | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | WLEDEmbedded (LED Driver) |
| interfaz de señal | LVDS (1 ch, 6-bit), 20 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | IA |
