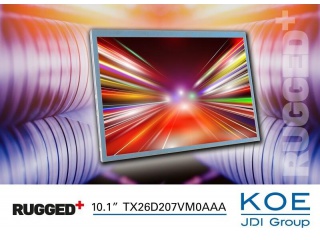

| Número de pieza | TX26D207VM0AAA |
| Marca | KOE |
| Tamaño | 10.1 |
| Solicitud | Industrial Outdoor H |
| Resolución | 1280×800 |
| Composición | a-Si TFT-LCD , LCM |
| Brillo | |
| CR | 1500:1 |
| Colores | 16.7M |
| Iluminar desde el fondo | WLED |
| Interfaz | LVDS |
| marca | KOE |
| tamaño diagonal | 10.1 inch |
| formato de píxel | 1280(RGB)×800 [WXGA] 149PPI |
| área activa | 217.344(H)×135.84(V) mm |
| área del bisel | 220.344(H)×138.838(V) mm |
| luminancia | 1000 cd/m² (Typ.) |
| ver dirección | Symmetry |
| ángulo de visión | 85/85/85/85 (Typ.)(CR≥10) |
| color de soporte | 16.7M 65% NTSC |
| peso | 340g (Typ.) |
| cuadros por segundo | 60Hz |
| Tipo de interfaz | LVDS (1 ch, 8-bit) , 20 pins Connector |
| fuente de alimentación | 3.3V (Typ.) |
| ambiente | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 5.0G (49.0 m/s²) |
| modelo | TX26D207VM0AAA |
| tipo | a-Si TFT-LCD , LCM |
| configuración | RGB Vertical Stripe |
| contorno tenue | 231(H)×153.5(V) ×11.07(D) mm |
| tratamiento | - |
| relación de contraste | 1500:1 (Typ.) (TM) |
| tiempo de respuesta | 25 (Max.)(Tr+Tf) |
| modo operativo | IPS, Normally Black, Transmissive |
| fuente de luz | WLED , 70K hours , With LED Driver |
| diseñado para | Industrial Outdoor High Brightness Automotive Display |
| panel táctil | Without |
