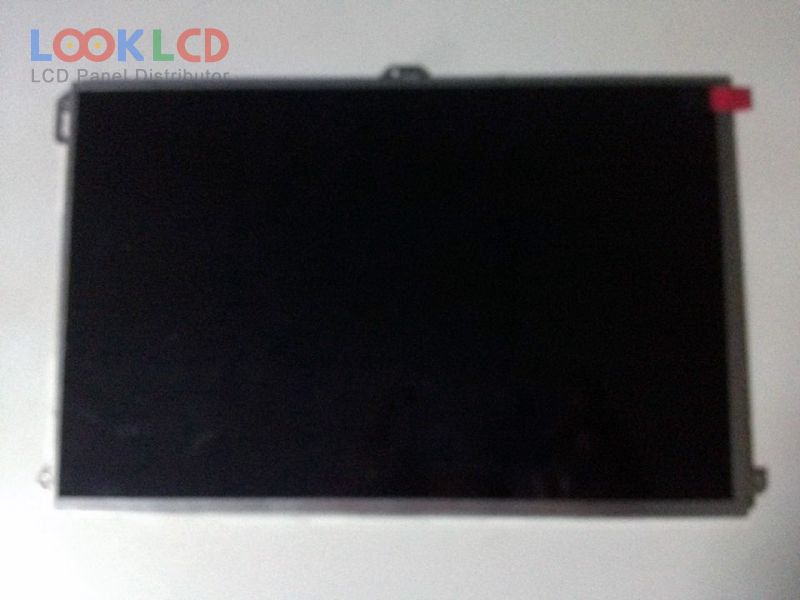

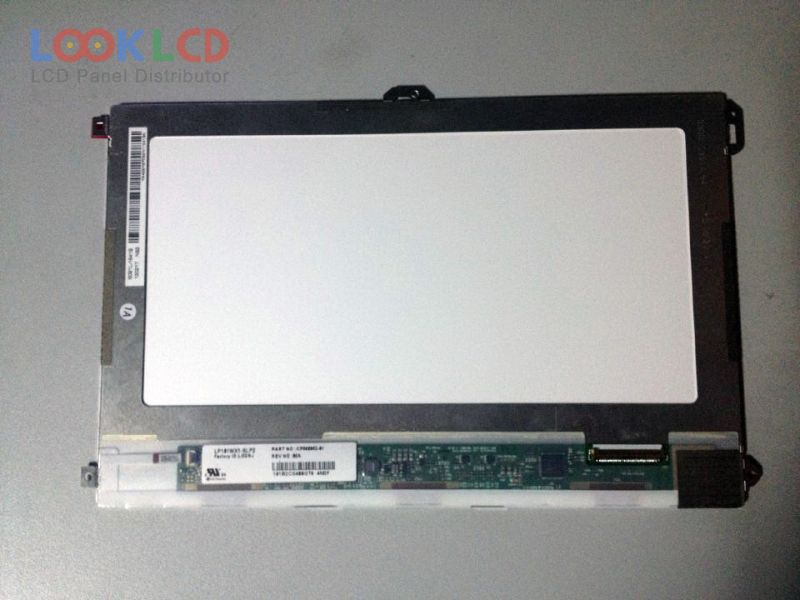

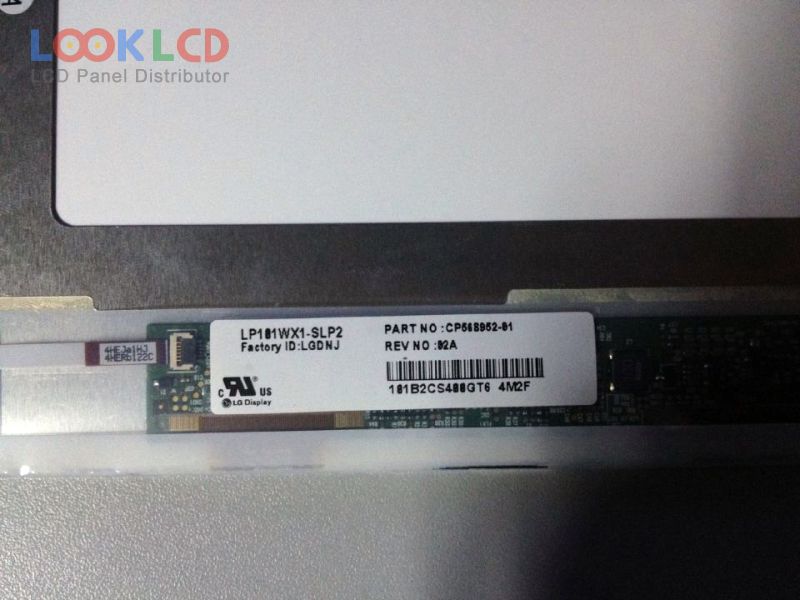

| Número de pieza | LP101WX1-SLP2 |
| Marca | LG Display |
| Tamaño | 10.1 |
| Solicitud | |
| Resolución | 1280×800 |
| Composición | LCM |
| Brillo | 400 |
| CR | 500:1 |
| Colores | 262K |
| Iluminar desde el fondo | WLED |
| Interfaz | LVDS |
| marca de paneles | LG Display |
| modelo de panel | LP101WX1-SLP2 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 10.1 inch |
| resolución | 1280(RGB)×800 , WXGA |
| modo de visualización | IPS, Normally Black, Transmissive |
| área activa | 216.96×135.6 mm |
| describir | 229.46×149.2×5.2 mm |
| superficie | Antiglare |
| brillo | 400 cd/m² (Typ.) |
| relación de contraste | 500:1 (Min.) |
| mostrar colores | 262K (6-bit) |
| tiempo de respuesta | 35 (Typ.)(Tr+Td) |
| ángulo de visión | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | WLEDEmbedded (LED Driver) |
| interfaz de señal | LVDS (1 ch, 6-bit), 40 pins |
| voltaje de entrada | 3.3V (Typ.) |
