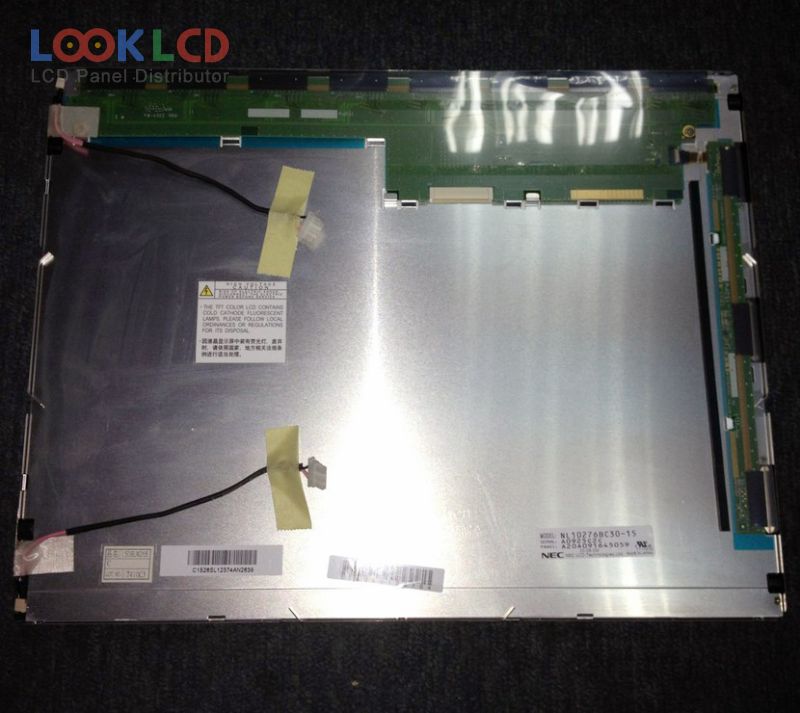

| Número de pieza | NL10276BC30-15 |
| Marca | NLT |
| Tamaño | 15.0 |
| Solicitud | IA |
| Resolución | 1024×768 |
| Composición | LCM |
| Brillo | 250 |
| CR | 400:1 |
| Colores | 16.7M |
| Iluminar desde el fondo | CCFL |
| Interfaz | LVDS |
| marca de paneles | NEC |
| modelo de panel | NL10276BC30-15 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 15.0 inch |
| resolución | 1024(RGB)×768 , XGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 304.128×228.096 mm |
| describir | 328×252×11.5 mm |
| superficie | Antiglare, Hard coating (3H) |
| brillo | 250 cd/m² (Typ.) |
| relación de contraste | 400:1 (Typ.) |
| mostrar colores | 16.7M (6-bit + Hi-FRC), CIE193160% |
| tiempo de respuesta | 8/17 (Typ.)(Tr/Td) |
| ángulo de visión | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 2 pcsCCFLWithout Driver |
| interfaz de señal | LVDS (1 ch, 8-bit), 20 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | IA |
