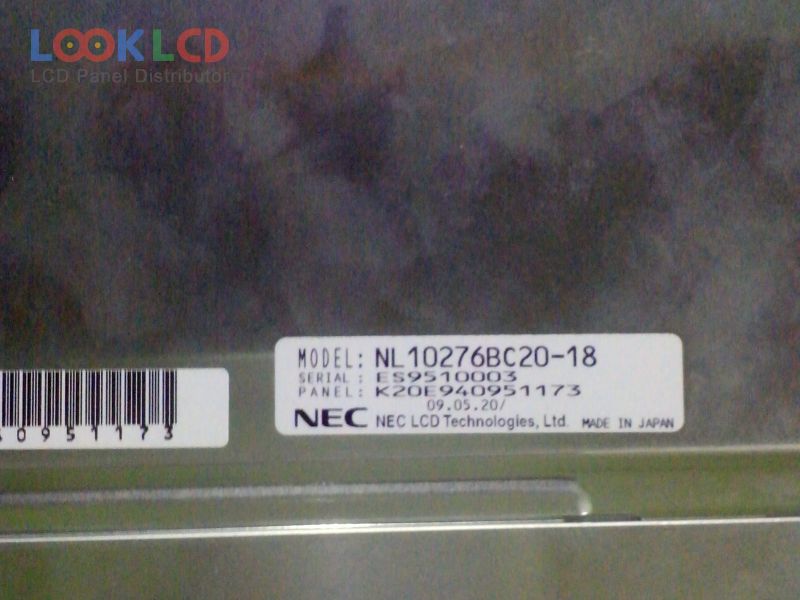

| Número de pieza | NL10276BC20-18 |
| Marca | NLT |
| Tamaño | 10.4 |
| Solicitud | IA |
| Resolución | 1024×768 |
| Composición | LCM |
| Brillo | 400 |
| CR | 900:1 |
| Colores | 262K/16.7M |
| Iluminar desde el fondo | WLED |
| Interfaz | LVDS |
| marca de paneles | NEC |
| modelo de panel | NL10276BC20-18 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 10.4 inch |
| resolución | 1024(RGB)×768 , XGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 210.4×157.8 mm |
| describir | 228×178.5×9.2 mm |
| superficie | Clear, Hard coating (3H) |
| brillo | 400 cd/m² (Typ.) |
| relación de contraste | 900:1 (Typ.) |
| mostrar colores | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| tiempo de respuesta | 3/15 (Typ.)(Tr/Td) |
| ángulo de visión | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 2 stringsWLEDWithout Driver |
| interfaz de señal | LVDS (1 ch, 6/8-bit), 20 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | IA |
