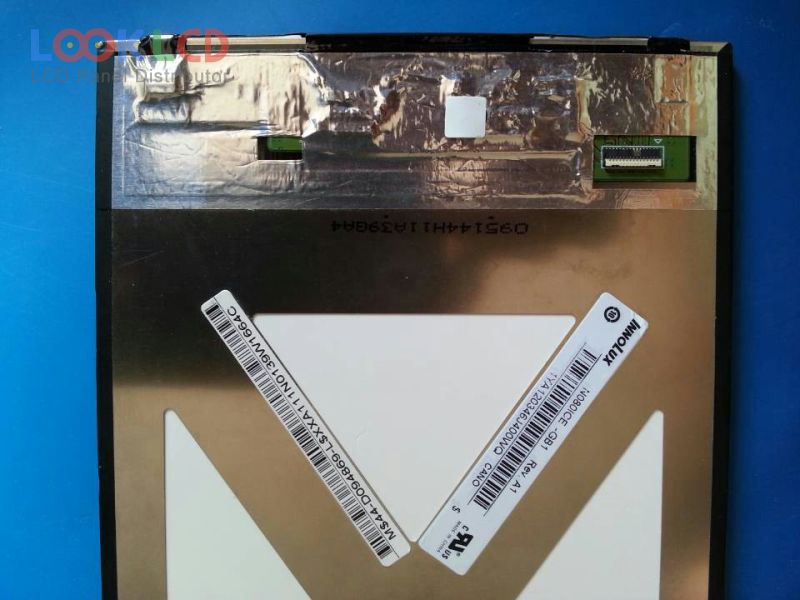

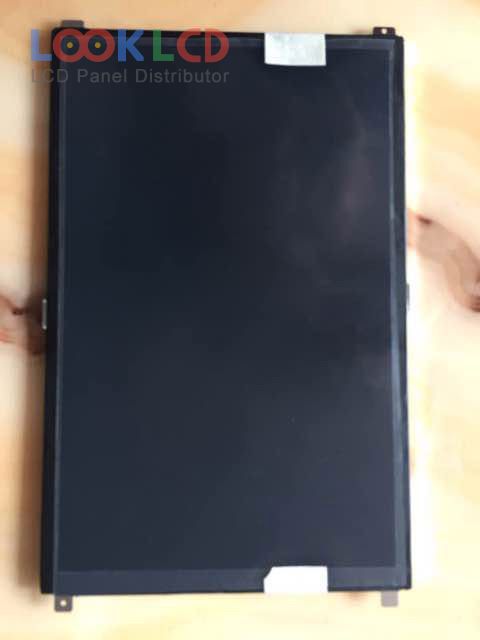

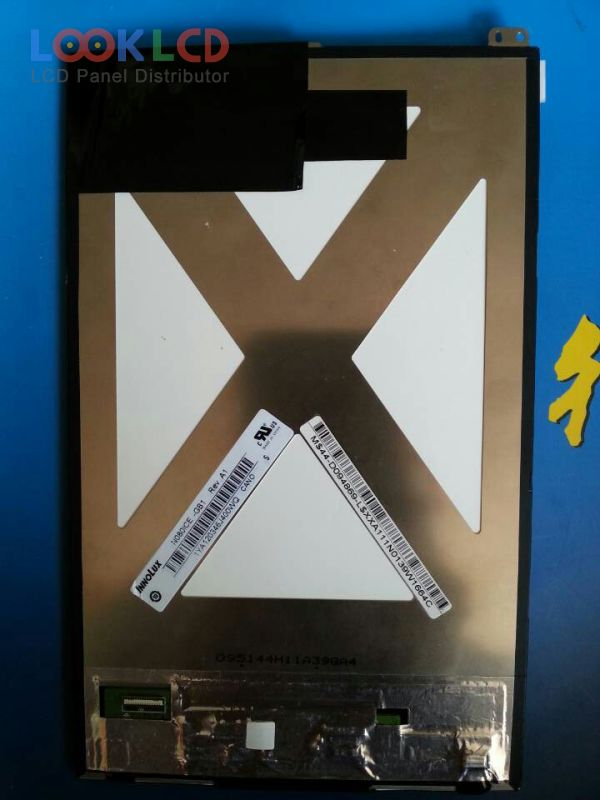

| Número de pieza | N080ICE-GB1 |
| Marca | Innolux |
| Tamaño | 8.0 |
| Solicitud | PAD |
| Resolución | 800×1280 |
| Composición | LCM |
| Brillo | 350 |
| CR | 800:1 |
| Colores | 16.7M |
| Iluminar desde el fondo | WLED |
| Interfaz | MIPI |
| marca de paneles | INNOLUX |
| modelo de panel | N080ICE-GB1 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 8.0 inch |
| resolución | 800(RGB)×1280 , WXGA |
| modo de visualización | AAS, Normally Black, Transmissive |
| área activa | 107.64×172.224 mm |
| describir | 120.65×187.64×5.1 mm |
| superficie | Hard coating (3H), Antireflection |
| brillo | 350 cd/m² (Typ.) |
| relación de contraste | 800:1 (Typ.) |
| mostrar colores | 16.7M (8-bit), CIE193160% |
| tiempo de respuesta | 25 (Typ.)(Tr+Tf) |
| ángulo de visión | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | WLEDWithout Driver |
| interfaz de señal | MIPI (4 data lanes), 31 pins |
| voltaje de entrada | 1.8/3.6V (Typ.)(VDD/VCI) |
| solicitud | PAD |
