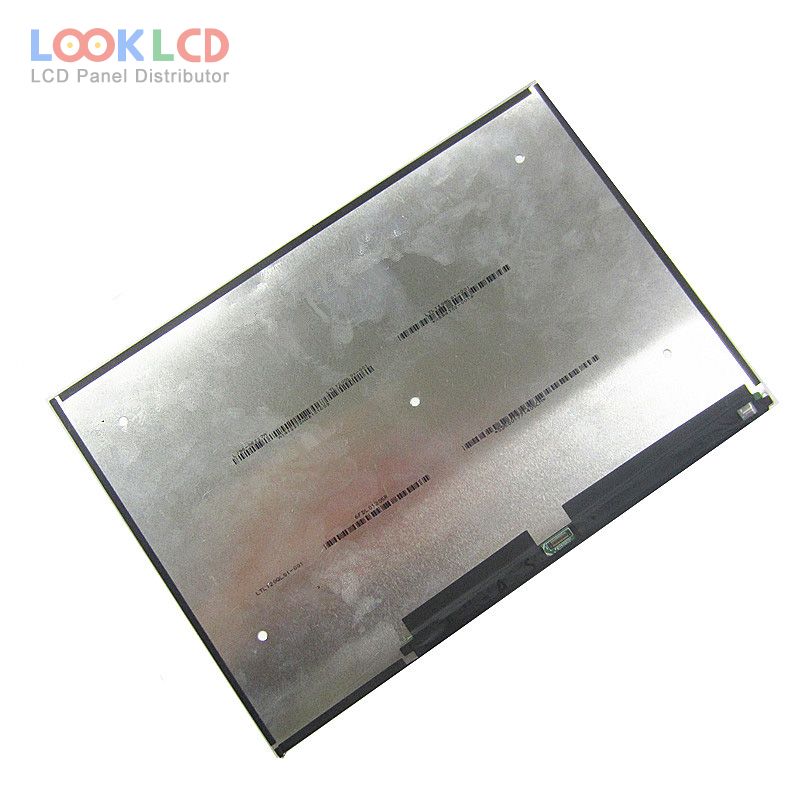

| Número de pieza | LTL120QL01-001 |
| Marca | Samsung |
| Tamaño | 12.0 |
| Solicitud | PAD |
| Resolución | 2160×1440 |
| Composición | LCM |
| Brillo | 400 |
| CR | 800:1 |
| Colores | 16.7M |
| Iluminar desde el fondo | WLED |
| Interfaz | eDP |
| marca de paneles | SAMSUNG |
| modelo de panel | LTL120QL01-001 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 12.0 inch |
| resolución | 2160(RGB)×1440 |
| modo de visualización | PLS, Normally Black, Transmissive |
| área activa | 254.016×169.344 mm |
| describir | 263.42×182.26×4.29 mm |
| superficie | Glare (Haze 0%), Hard coating (2H) |
| brillo | 400 cd/m² (Typ.) |
| relación de contraste | 800:1 (Typ.) |
| mostrar colores | 16.7M (8-bit), CIE193172% |
| tiempo de respuesta | 25/35 (Max.)(Tr/Td) |
| ángulo de visión | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 9S6PWLEDEmbedded (LED Driver) |
| interfaz de señal | eDP (4 Lanes), 40 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | PAD |
