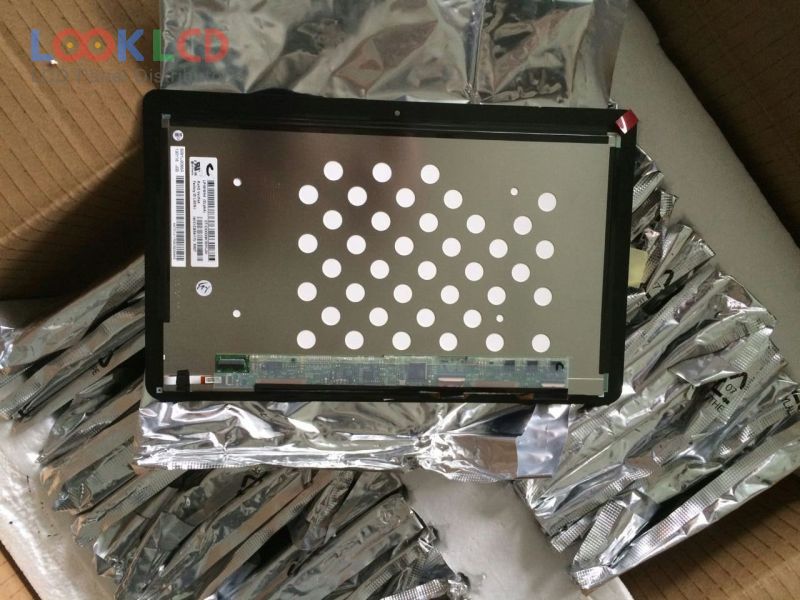

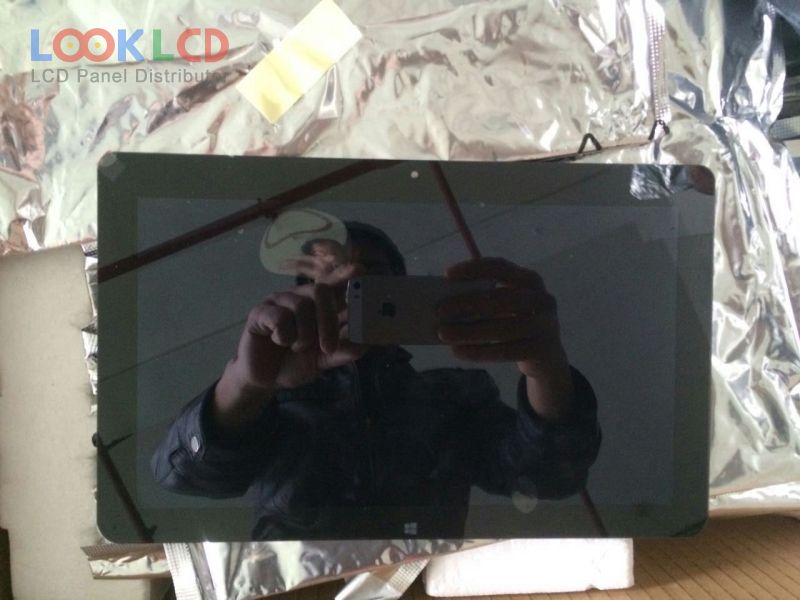

| Número de pieza | LP101WH4-SLAA |
| Marca | LG Display |
| Tamaño | 10.1 |
| Solicitud | PAD |
| Resolución | 1366×768 |
| Composición | Assembly |
| Brillo | 315 |
| CR | 800:1 |
| Colores | 16.7M |
| Iluminar desde el fondo | WLED |
| Interfaz | LVDS |
| marca de paneles | LG Display |
| modelo de panel | LP101WH4-SLAA |
| tipo de panel | a-Si TFT-LCD , Assembly |
| Tamaño del panel | 10.1 inch |
| resolución | 1366(RGB)×768 , WXGA |
| área activa | 222.52×125.11 mm |
| describir | 254.3×158×5.45 mm |
| superficie | Anti Fingerprint, Hard coating (8H) |
| brillo | 315 cd/m² (Typ.) |
| relación de contraste | 800:1 (Typ.) |
| mostrar colores | 16.7M (8-bit) |
| ángulo de visión | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| interfaz de señal | LVDS (1 ch, 8-bit), 39 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | PAD |
