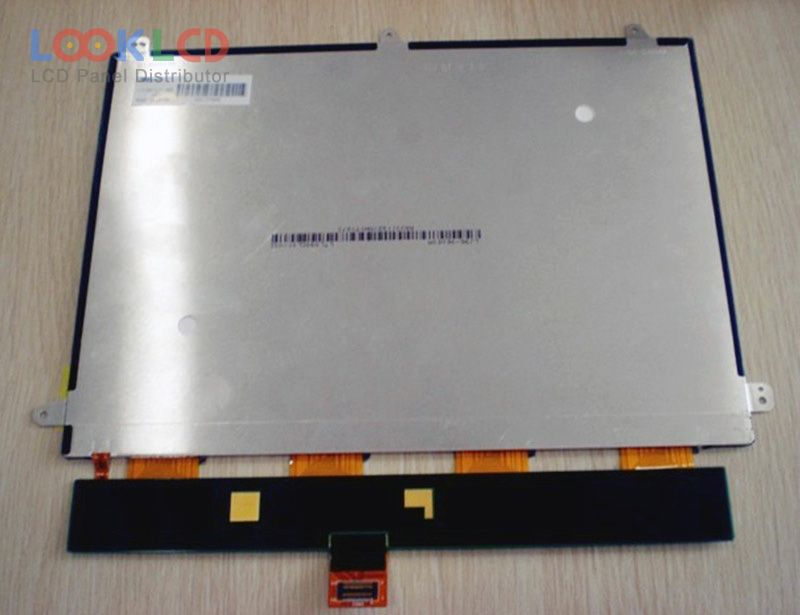

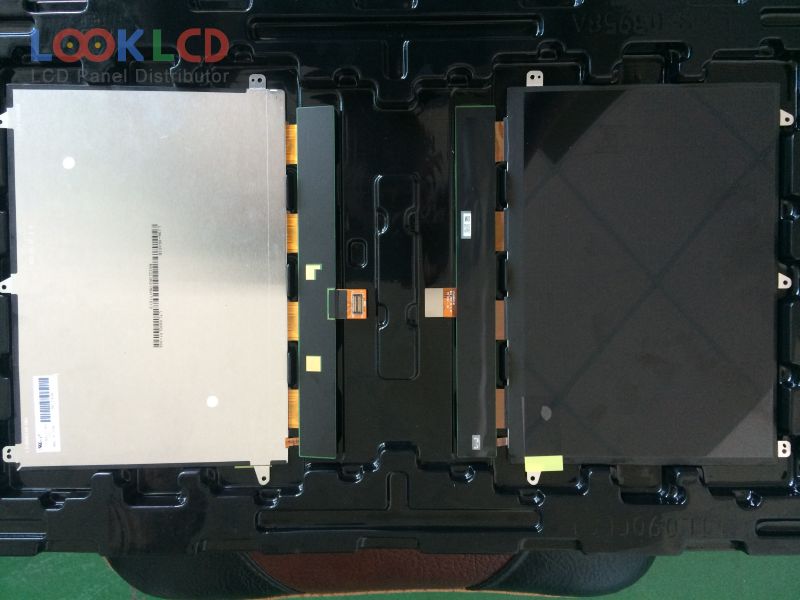

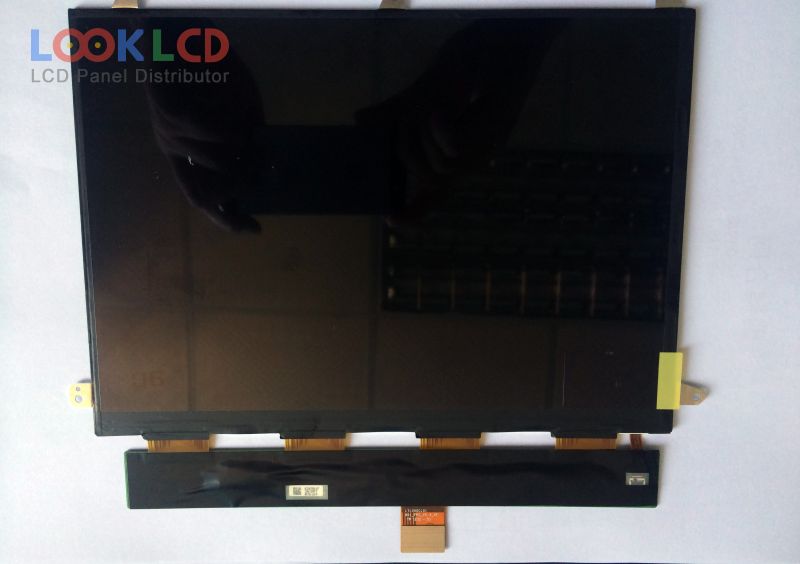

| Número de pieza | LTL090CL01-W02 |
| Marca | Samsung |
| Tamaño | 9.0 |
| Solicitud | PAD |
| Resolución | 1920×1280 |
| Composición | LCM |
| Brillo | 400 |
| CR | 800:1 |
| Colores | 262K |
| Iluminar desde el fondo | WLED |
| Interfaz | MIPI |
| marca de paneles | SAMSUNG |
| modelo de panel | LTL090CL01-W02 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 9.0 inch |
| resolución | 1920(RGB)×1280 |
| modo de visualización | PLS, Normally Black, Transmissive |
| área activa | 190.08×126.72 mm |
| describir | 200.91×141.21×2.728 mm |
| superficie | |
| brillo | 400 cd/m² (Typ.) |
| relación de contraste | 800:1 (Typ.) |
| mostrar colores | 262K (6-bit), CIE193150% |
| tiempo de respuesta | 16 (Typ.)(Tr+Td) |
| ángulo de visión | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 7S5PWLEDWithout Driver |
| interfaz de señal | MIPI (4 data lanes), 40 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | PAD |
