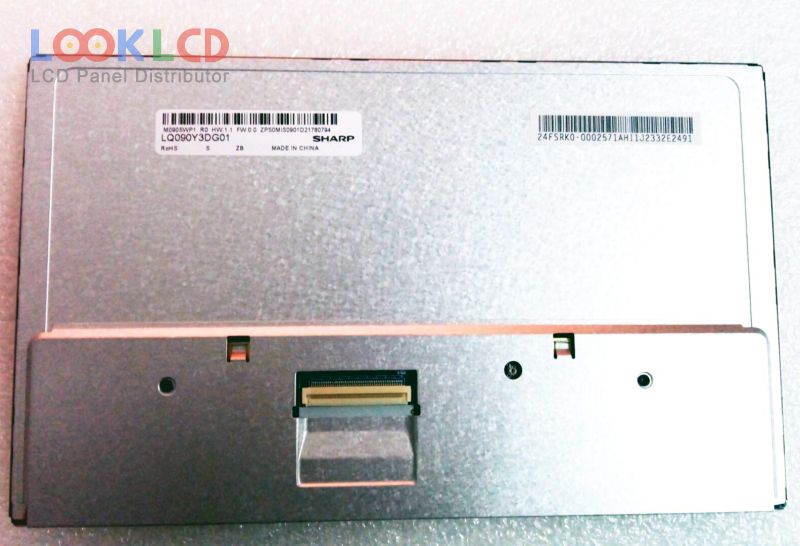

| Número de pieza | LQ090Y3DG01 |
| Marca | SHARP |
| Tamaño | 9.0 |
| Solicitud | DPF |
| Resolución | 800×480 |
| Composición | LCM |
| Brillo | 300 |
| CR | 500:1 |
| Colores | 16.7M |
| Iluminar desde el fondo | WLED |
| Interfaz | TTL |
| marca de paneles | SHARP |
| modelo de panel | LQ090Y3DG01 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 9.0 inch |
| resolución | 800(RGB)×480 , WVGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 198×111.696 mm |
| describir | 211.1×128.4 mm |
| superficie | Antiglare, Hard coating (3H) |
| brillo | 300 cd/m² (Typ.) |
| relación de contraste | 500:1 (Typ.) |
| mostrar colores | 16.7M (8-bit) |
| tiempo de respuesta | 25 (Typ.)(Tr+Td) |
| ángulo de visión | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | WLEDEmbedded (LED Driver) |
| interfaz de señal | Parallel RGB (1 ch, 8-bit) |
| solicitud | DPF |
