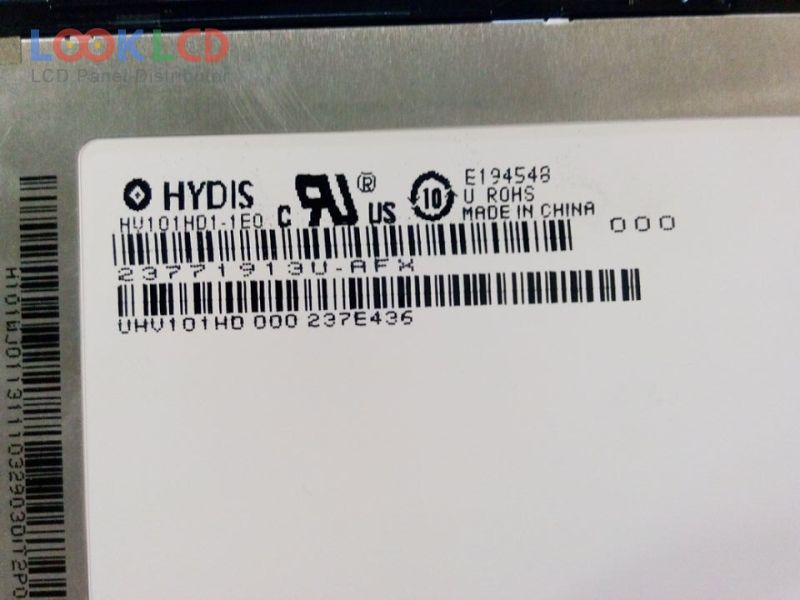

| Número de pieza | HV101HD1-1E0 |
| Marca | HYDIS |
| Tamaño | 10.1 |
| Solicitud | PAD |
| Resolución | 1366×768 |
| Composición | LCM |
| Brillo | |
| CR | 800:1 |
| Colores | 16.7M |
| Iluminar desde el fondo | WLED |
| Interfaz | LVDS |
| marca de paneles | HYDIS |
| modelo de panel | HV101HD1-1E0 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 10.1 inch |
| resolución | 1366(RGB)×768 , WXGA |
| modo de visualización | HFFS, Normally Black, Transmissive |
| área activa | 223.341×125.568 mm |
| superficie | |
| brillo | |
| relación de contraste | 800:1 (Typ.) |
| mostrar colores | 16.7M (8-bit), CIE193150% |
| tiempo de respuesta | 30 (Typ.)(Tr+Td) |
| ángulo de visión | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | WLEDEmbedded (LED Driver) |
| interfaz de señal | LVDS (1 ch, 8-bit), 40 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | PAD |
