| Número de pieza | VVX10T022N00 |
| Marca | Panasonic |
| Tamaño | 10.1 |
| Solicitud | PAD |
| Resolución | 2560×1600 |
| Composición | LCM |
| Brillo | 400 |
| CR | 1000:1 |
| Colores | 16.7M |
| Iluminar desde el fondo | WLED |
| Interfaz | eDP |
| marca de paneles | Panasonic |
| modelo de panel | VVX10T022N00 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 10.1 inch |
| resolución | 2560(RGB)×1600 , WQXGA |
| modo de visualización | IPS, Normally Black, Transmissive |
| área activa | 216.96×135.6 mm |
| describir | 227.65×147.85×4.37 mm |
| superficie | Hard coating |
| brillo | 400 cd/m² (Typ.) |
| relación de contraste | 1000:1 (Typ.) |
| mostrar colores | 16.7M (8-bit), CIE193172% |
| tiempo de respuesta | 30 (Max.)(Tr+Td) |
| ángulo de visión | 80/80/80/80 (Min.)(CR≥100)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 7S6PWLEDWithout Driver |

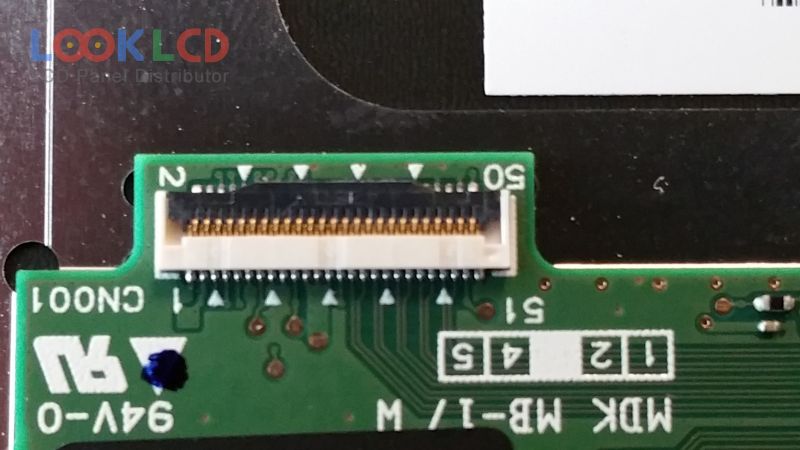

| interfaz de señal | eDP (4 Lanes), 51 pins |
| voltaje de entrada | 3.7V (Typ.) |
| solicitud | PAD |
