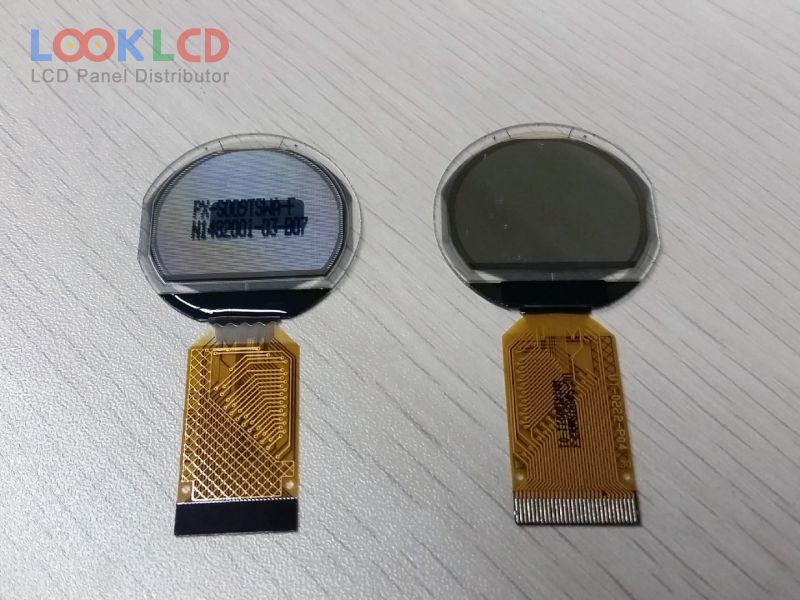

| Número de pieza | UG-S009TSWAGF3 |
| Marca | WiseChip |
| Tamaño | 1.1 |
| Solicitud | SW |
| Resolución | 160×128 |
| Composición | OLED |
| Brillo | |
| CR | |
| Colores | Grayscale(W) |
| Iluminar desde el fondo | self |
| Interfaz | CPU |
| marca de paneles | WiseChip |
| modelo de panel | UG-S009TSWAGF3 |
| tipo de panel | PM-OLED , OLED |
| Tamaño del panel | 1.1 inch |
| resolución | 160×128 |
| área activa | 26.86×21.484 mm |
| describir | 32.7×62.6 mm |
| superficie | |
| brillo | |
| relación de contraste | |
| mostrar colores | Grayscale(W) (4-bit) |
| ángulo de visión | |
| interfaz de señal | 8-bit parallel, 30 pins |
| rohs: | |
| solicitud | SW |
| H139BLN01.0 | AUO | 1.39 | 400×400 |
| LS013B7DH06 | SHARP | 1.33 | 128×128 |
| OEL9M0082-R-E | Other | 1.1 | 128×128 |
| OEL9M1007-G-E | Other | 1.1 | 96×96 |
| OEL9M1007-Y-E | Other | 1.1 | 96×96 |
| OEL9M1010-R-E | Other | 0.95 | 96×64 |
| OEL9M1010-Y-E | Other | 0.95 | 96×64 |
| RGS13128096WH000 | RiTdisplay | 1.3 | 128×96 |
| RGS15128128WR000 | RiTdisplay | 1.5 | 128×128 |
| UG-S009TSWAGF3 | WiseChip | 1.1 | 160×128 |
