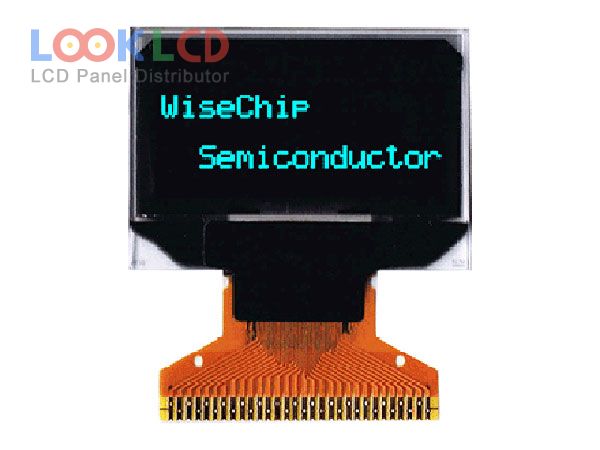

| Número de pieza | UG-2864HLBEG01 |
| Marca | WiseChip |
| Tamaño | 0.96 |
| Solicitud | IA |
| Resolución | 128×64 |
| Composición | OLED |
| Brillo | 100 |
| CR | 2000:1 |
| Colores | Mono(Blue) |
| Iluminar desde el fondo | self |
| Interfaz | CPU/SPI/I²C |
| marca de paneles | Univision |
| modelo de panel | UG-2864HLBEG01 |
| tipo de panel | PM-OLED , OLED |
| Tamaño del panel | 0.96 inch |
| resolución | 128×64 |
| área activa | 21.744×10.864 mm |
| describir | 26.7×19.26×1.55 mm |
| superficie | |
| brillo | 100 cd/m² (Typ.) |
| relación de contraste | 2000 : 1 (Typ.) |
| mostrar colores | Mono(Blue) (1-bit) |
| ángulo de visión | 80/80/80/80 (Min.)(L/R/U/D) |
| controlador ic | Built-in SSD1306 |
| interfaz de señal | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
| voltaje de entrada | 2.8/9V (Typ.)(VDD/VCC) |
| rohs: | |
| solicitud | IA |
