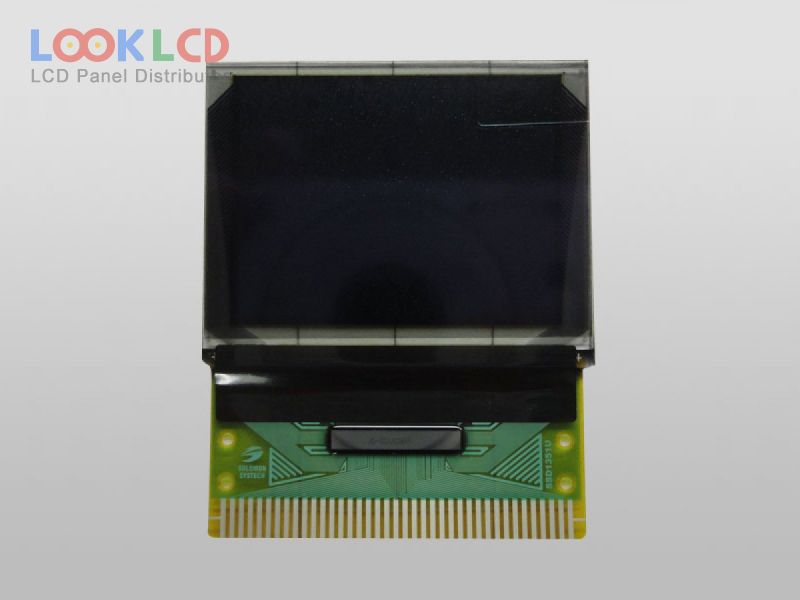

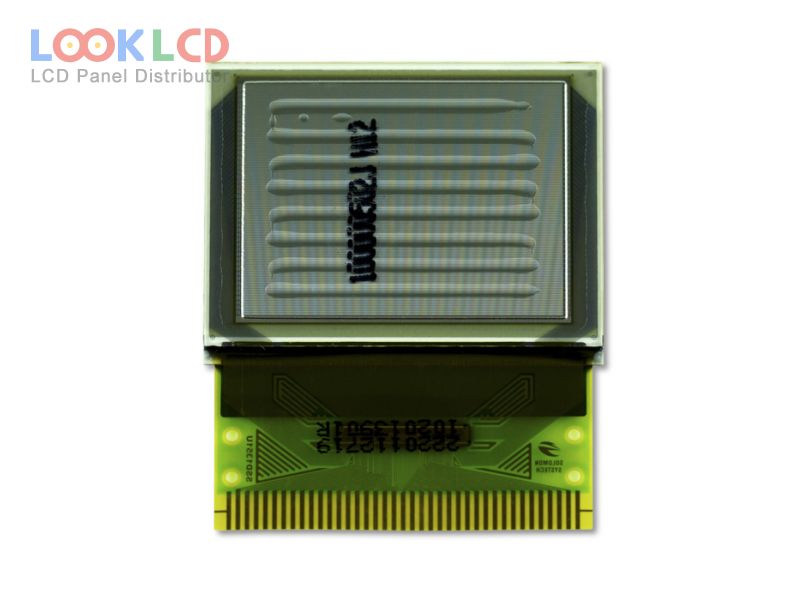

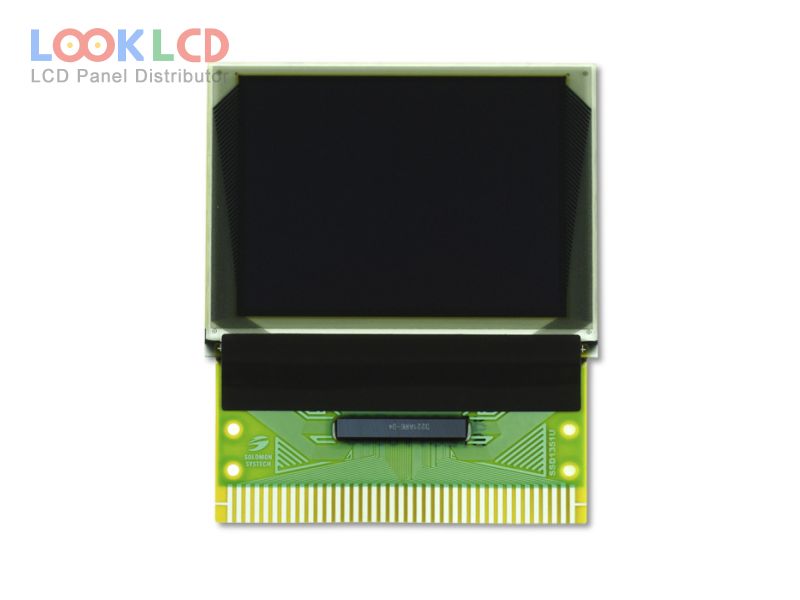

| Número de pieza | RGS13128096FH003 |
| Marca | RiTdisplay |
| Tamaño | 1.3 |
| Solicitud | SW |
| Resolución | 128×96 |
| Composición | OLED |
| Brillo | 90 |
| CR | 2000:1 |
| Colores | 65K/262K |
| Iluminar desde el fondo | self |
| Interfaz | CPU/SPI |
| marca de paneles | RiTdisplay |
| modelo de panel | RGS13128096FH003 |
| tipo de panel | PM-OLED , OLED |
| Tamaño del panel | 1.3 inch |
| resolución | 128(RGB)×96 |
| área activa | 26.279×19.708 mm |
| describir | 33×25.8×1.31 mm |
| superficie | Antiglare |
| brillo | 90 cd/m² (Typ.) |
| relación de contraste | 2000 : 1 (Min.) |
| mostrar colores | 65K/262K (6-bit), CIE193166% |
| ángulo de visión | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frecuencia | 105Hz |
| controlador ic | COF Built-in SSD1351UR1 |
| interfaz de señal | 8/16/18-bit 6800/8080 parallel, SPI, 39 pins |
| voltaje de entrada | 15/2.7/1.8V (Typ.)(VCC/VCI/VDDIO) |
| solicitud | SW |
| E1392AM1.A | EDO | 1.39 | 400×400 |
| LG 1.3 Circular P-OLED | LG Display | 1.3 | 320×320 |
| LPM012A154A | JDI | 1.2 | 218×218 |
| LS012B7DH02 | SHARP | 1.2 | 240×240 |
| OEL9M0082-Y-E | Other | 1.1 | 128×128 |
| OEL9M0084-G-E | Other | 0.91 | 128×32 |
| OEL9M1007-B-E | Other | 1.1 | 96×96 |
| OEL9M1010-Y-E | Other | 0.95 | 96×64 |
| RGS13128096FH003 | RiTdisplay | 1.3 | 128×96 |
| RGS15128128WR000 | RiTdisplay | 1.5 | 128×128 |
