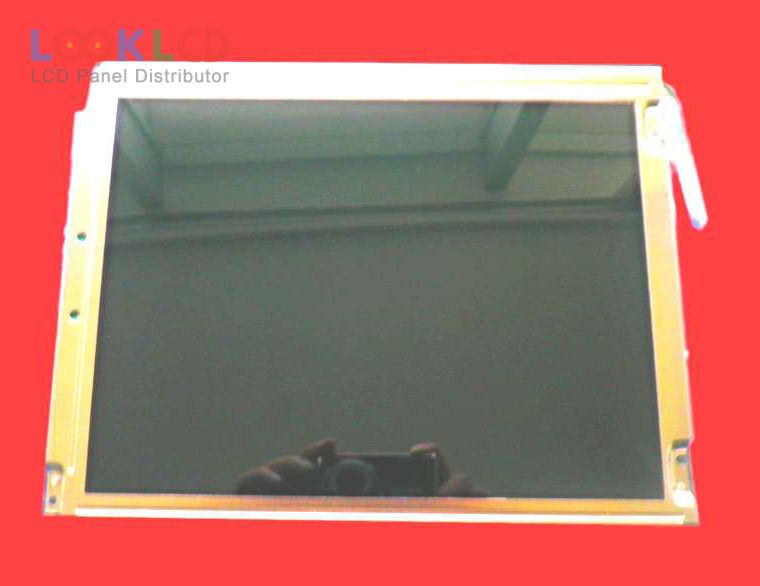

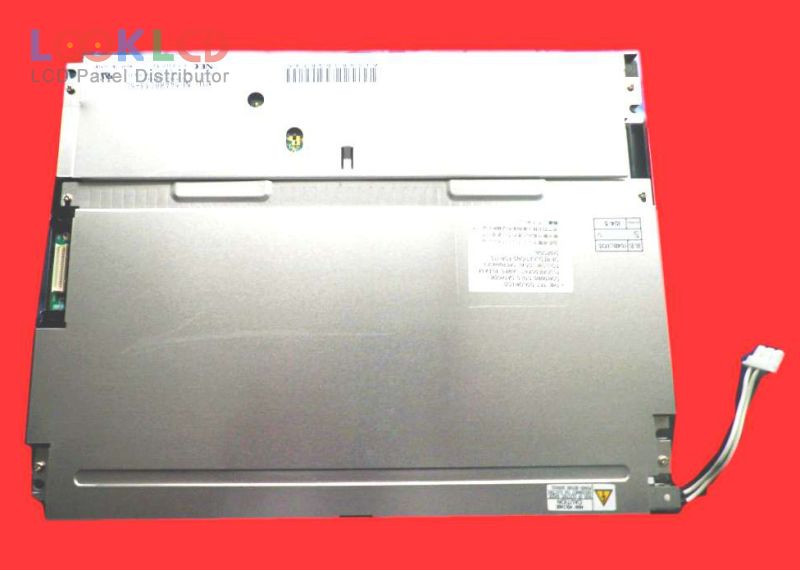

| Número de pieza | NL6448BC33-50 |
| Marca | NLT |
| Tamaño | 10.4 |
| Solicitud | IA |
| Resolución | 640×480 |
| Composición | LCM |
| Brillo | 250 |
| CR | 100:1 |
| Colores | 262K |
| Iluminar desde el fondo | CCFL |
| Interfaz | TTL |
| marca de paneles | NEC |
| modelo de panel | NL6448BC33-50 1 Compatible model |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 10.4 inch |
| resolución | 640(RGB)×480 , VGA |
| modo de visualización | TN, Normally White, Transflective |
| área activa | 211.2×158.4 mm |
| describir | 243×185.1×11.5 mm |
| superficie | Clear, Hard coating (2H), Antireflection |
| brillo | 250 cd/m² (Typ.) |
| relación de contraste | 100:1 (Typ.)(Transmissive)8:1 (Typ.)(Reflective) |
| mostrar colores | 262K (6-bit), CIE193150% |
| tiempo de respuesta | 5/20 (Typ.)(Tr/Td) |
| ángulo de visión | 75/55/40/55 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 2 pcsCCFLWithout Driver |
| interfaz de señal | CMOS (1 ch, 6-bit), 31 pins |
| voltaje de entrada | 3.3/5.0V (Typ.)(VCC) |
| solicitud | IA |
| NL6448AC33-18 | NLT | 10.4 | 640×480 |
| NL6448AC33-18A | NLT | 10.4 | 640×480 |
| NL6448AC33-24 | NLT | 10.4 | 640×480 |
| NL6448BC18-01F | NLT | 5.7 | 640×480 |
| NL6448BC20-18D | NLT | 6.5 | 640×480 |
| NL6448BC20-35D | NLT | 6.5 | 640×480 |
| NL6448BC26-17 | NLT | 8.4 | 640×480 |
| NL6448BC28-01 | NLT | 9.0 | 640×480 |
| NL6448BC33-50 | NLT | 10.4 | 640×480 |
| NL6448BC33-54 | NLT | 10.4 | 640×480 |
| AA070ME01 | Mitsubishi | 7.0 | 800×480 |
| AA121SJ03 | Mitsubishi | 12.1 | 800×600 |
| DLC0570BDG-T-2 | Other | 5.7 | 640×480 |
| EL320.240.36 LK | Lumineq | 5.7 | 320×240 |
| G104SN03 V4 | AUO | 10.4 | 800×600 |
| G104VN01 V1 | AUO | 10.4 | 640×480 |
| LQ084S3DG01 | SHARP | 8.4 | 800×600 |
| LQ121S1DG43 | SHARP | 12.1 | 800×600 |
| LQ150X1LG71 | SHARP | 15.0 | 1024×768 |
| PD064VT8 | E Ink | 6.4 | 640×480 |
