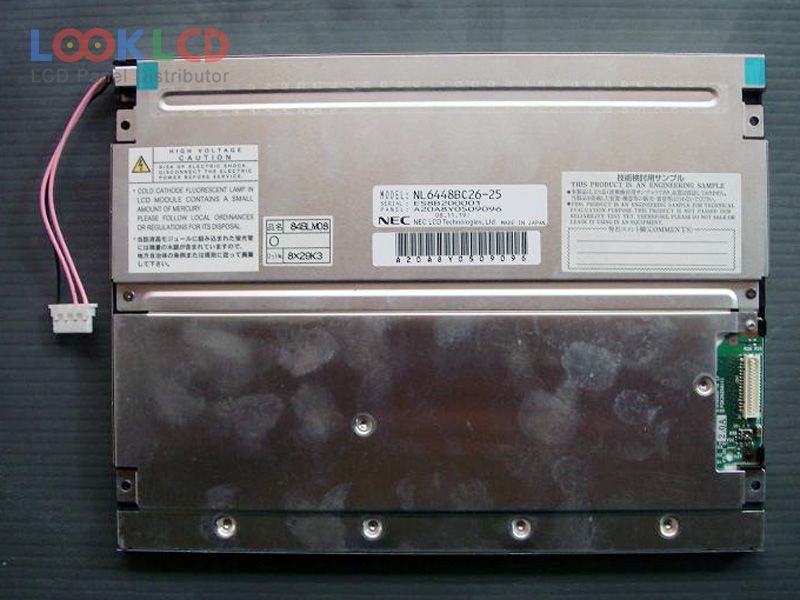

| Número de pieza | NL6448BC26-25 |
| Marca | NLT |
| Tamaño | 8.4 |
| Solicitud | IA |
| Resolución | 640×480 |
| Composición | LCM |
| Brillo | 600 |
| CR | 600:1 |
| Colores | 262K |
| Iluminar desde el fondo | CCFL |
| Interfaz | TTL |
| marca de paneles | NEC |
| modelo de panel | NL6448BC26-25 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 8.4 inch |
| resolución | 640(RGB)×480 , VGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 170.88×128.16 mm |
| describir | 200×152×11 mm |
| superficie | Clear, Hard coating (3H) |
| brillo | 600 cd/m² (Typ.) |
| relación de contraste | 600:1 (Typ.) |
| mostrar colores | 262K (6-bit), CIE193160% |
| tiempo de respuesta | 6/19 (Typ.)(Tr/Td) |
| ángulo de visión | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 2 pcsCCFLWithout Driver |
| interfaz de señal | CMOS (1 ch, 6-bit), 31 pins |
| voltaje de entrada | 3.3/5.0V (Typ.)(VCC) |
| solicitud | IA |
