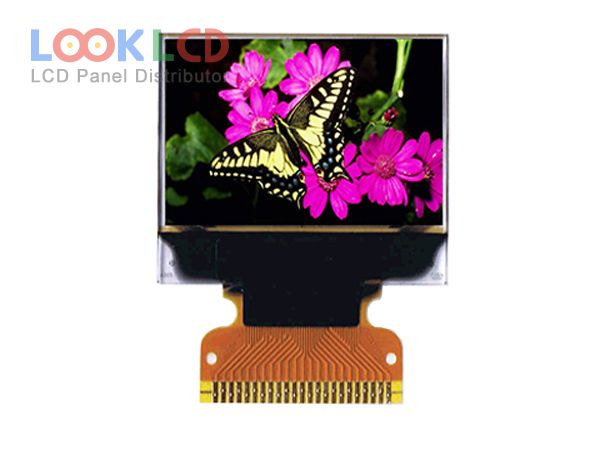

| Número de pieza | UG-9664HDDAG01 |
| Marca | WiseChip |
| Tamaño | 0.95 |
| Solicitud | IA |
| Resolución | 96×64 |
| Composición | OLED |
| Brillo | 100 |
| CR | 1000:1 |
| Colores | 65K |
| Iluminar desde el fondo | self |
| Interfaz | CPU/SPI |
| marca de paneles | WiseChip |
| modelo de panel | UG-9664HDDAG01 |
| tipo de panel | PM-OLED , OLED |
| Tamaño del panel | 0.95 inch |
| resolución | 96(RGB)×64 |
| área activa | 20.14×13.42 mm |
| describir | 25.7×22.2×1.6 mm |
| superficie | |
| brillo | 100 cd/m² (Typ.) |
| relación de contraste | 1000 : 1 (Typ.) |
| mostrar colores | 65K |
| ángulo de visión | 80/80/80/80 (Min.)(L/R/U/D) |
| controlador ic | COG Built-in SSD1331Z |
| interfaz de señal | 8-bit 6800/8080 parallel, 4-wire SPI, 23 pins |
| voltaje de entrada | 2.8/2.8/14.0V (Typ.)(VDD/VDDIO/VCC) |
| rohs: | |
| solicitud | IA |
