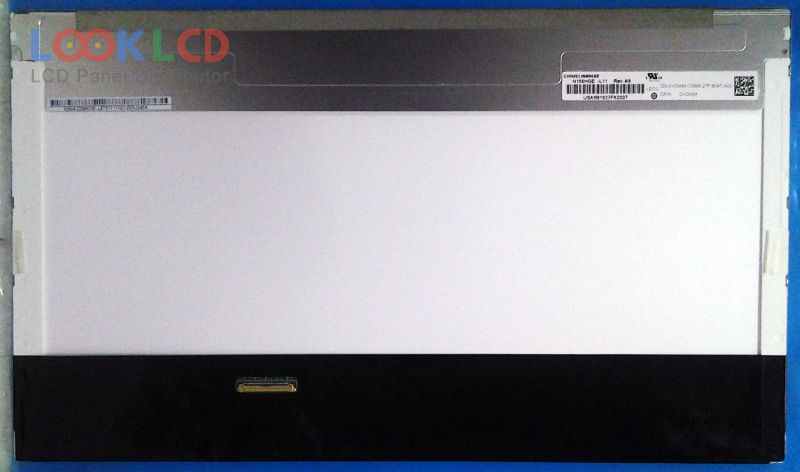

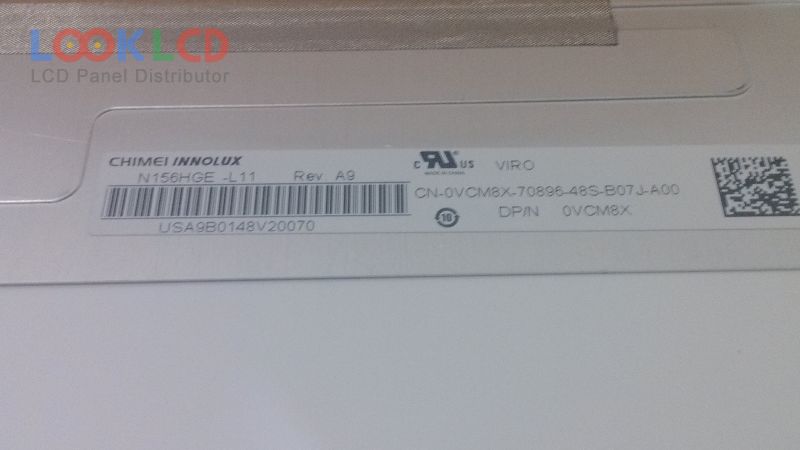

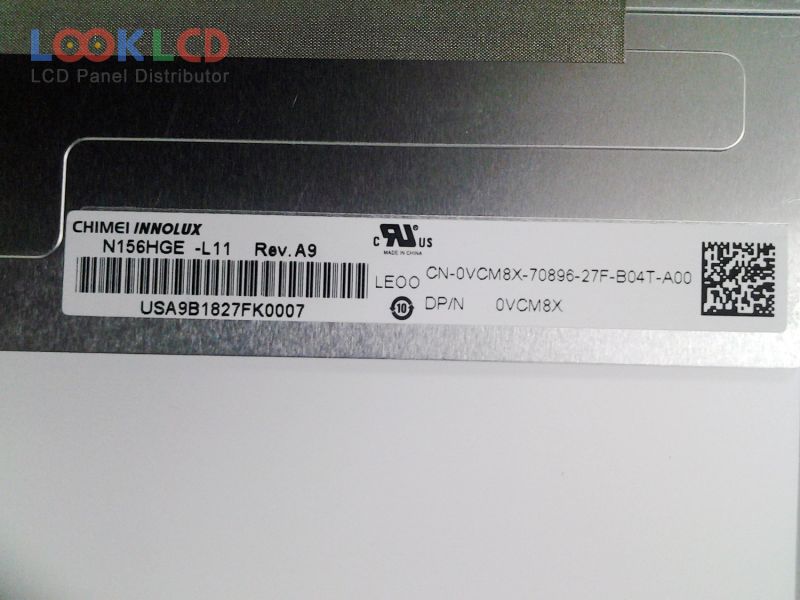

| Número de pieza | N156HGE-L11 |
| Marca | Innolux |
| Tamaño | 15.6 |
| Solicitud | NBPC |
| Resolución | 1920×1080 |
| Composición | LCM |
| Brillo | 300 |
| CR | 600:1 |
| Colores | 262K |
| Iluminar desde el fondo | WLED |
| Interfaz | LVDS |
| marca de paneles | CHIMEI INNOLUX |
| modelo de panel | N156HGE-L11 20 Compatible model |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 15.6 inch |
| resolución | 1920(RGB)×1080 , FHD |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 344.16×193.59 mm |
| describir | 359.3×209.5×5.5 mm |
| estilo de forma | Wedge (PCBA Bent, Depth ≥5.2mm) |
| superficie | Antiglare, Hard coating (3H) |
| brillo | 300 cd/m² (Typ.) |
| relación de contraste | 600:1 (Typ.) |
| mostrar colores | 262K (6-bit), CIE193160% |
| tiempo de respuesta | 3/8 (Typ.)(Tr/Td) |
| ángulo de visión | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 6 stringsWLEDEmbedded (LED Driver) |
| interfaz de señal | LVDS (2 ch, 6-bit), 40 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | NBPC |
| LP156WF7-SPB2 | LG Display | 15.6 | 1920×1080 |
| LTN156AT24-P01 | Samsung | 15.6 | 1366×768 |
| N156HCA-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA2 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EAL Rev.C1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-L11 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LB1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LG1 | Innolux | 15.6 | 1920×1080 |
| B156XTN04.1 | AUO | 15.6 | 1366×768 |
| LP125WF1-SPA2 | LG Display | 12.5 | 1920×1080 |
| LP125WF1-SPD1 | LG Display | 12.5 | 1920×1080 |
| LP156WF6-SPH3 | LG Display | 15.6 | 1920×1080 |
| LTD121EDFN | TOSHIBA | 12.1 | 1024×768 |
| LTN150U2-L02 | Samsung | 15.0 | 1600×1200 |
| LTN154U1-L02 | Samsung | 15.4 | 1920×1200 |
| LTN184KT02-T01 | Samsung | 18.4 | 1680×945 |
| N133B6-L01 | Innolux | 13.3 | 1366×768 |
| NL8060BC31-13A | NLT | 12.1 | 800×600 |
