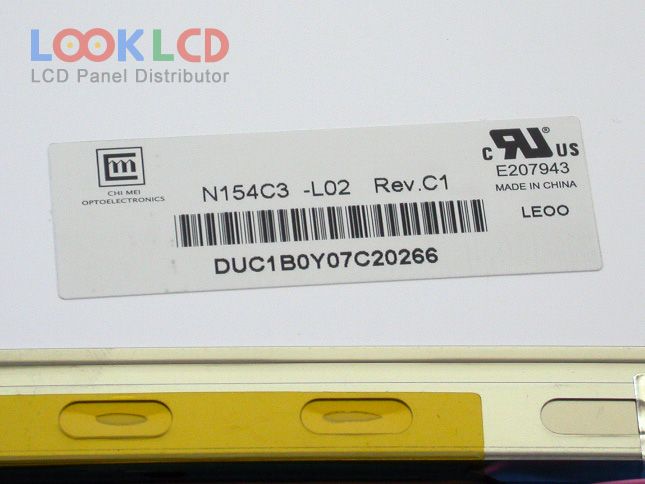

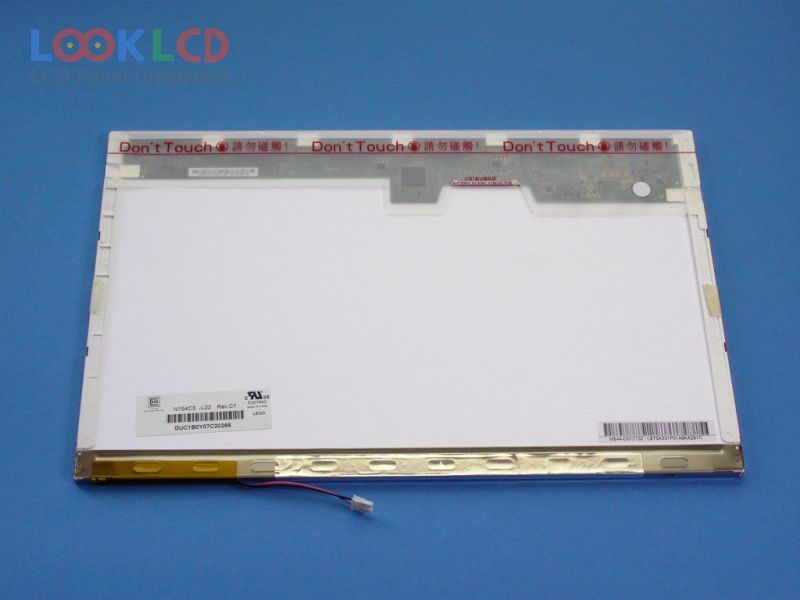

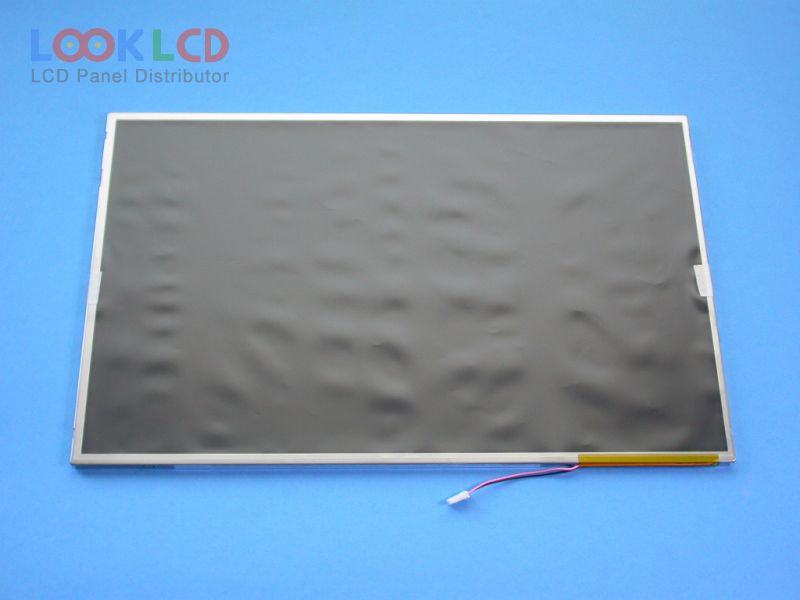

| Número de pieza | N154C3-L02 |
| Marca | Innolux |
| Tamaño | 15.4 |
| Solicitud | NBPC |
| Resolución | 1440×900 |
| Composición | LCM |
| Brillo | 200 |
| CR | 400:1 |
| Colores | 262K |
| Iluminar desde el fondo | CCFL |
| Interfaz | LVDS |
| marca de paneles | CMO |
| modelo de panel | N154C3-L02 2 Compatible model |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 15.4 inch |
| resolución | 1440(RGB)×900 , WXGA+ |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 331.56×207.225 mm |
| estilo de forma | Wedge (PCBA Bent, Depth ≥5.2mm) |
| superficie | Glare (Haze 0%), Hard coating (3H) |
| brillo | 200 cd/m² (Typ.) |
| relación de contraste | 400:1 (Typ.) |
| mostrar colores | 262K (6-bit) |
| tiempo de respuesta | 2/6 (Typ.)(Tr/Td) |
| ángulo de visión | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 1 pcsCCFLWithout Driver |
| interfaz de señal | LVDS (2 ch, 6-bit), 30 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | NBPC |
| B154PW02 V1 | AUO | 15.4 | 1440×900 |
| LP154W01-TLAD | LG Display | 15.4 | 1280×800 |
| LP154W01-TLE5 | LG Display | 15.4 | 1280×800 |
| LP154W02-TL10 | LG Display | 15.4 | 1680×1050 |
| LP154WU1-TLB1 | LG Display | 15.4 | 1920×1200 |
| LP154WX4-TLC3 | LG Display | 15.4 | 1280×800 |
| N154C1-L01 | Innolux | 15.4 | 1440×900 |
| N154C3-L02 | Innolux | 15.4 | 1440×900 |
| N154C6-L04 | Innolux | 15.4 | 1440×900 |
| NL128102BC23-03 | NLT | 15.4 | 1280×1024 |
| B125XW01 V0 | AUO | 12.5 | 1366×768 |
| LP140WH1-TLA1 | LG Display | 14.0 | 1366×768 |
| LP140WH1-TLE2 | LG Display | 14.0 | 1366×768 |
| LP154WX5-TLC1 | LG Display | 15.4 | 1280×800 |
| LP156WF4-SLB2 | LG Display | 15.6 | 1920×1080 |
| LQ10W03A | SHARP | 10.4 | 1024×600 |
| LTD133EX3X | TOSHIBA | 13.3 | 1280×800 |
| LTN140AT08-S03 | Samsung | 14.0 | 1366×768 |
| LTN170BT08-G01 | Samsung | 17.0 | 1440×900 |
| N121I3-L03 | Innolux | 12.1 | 1280×800 |
