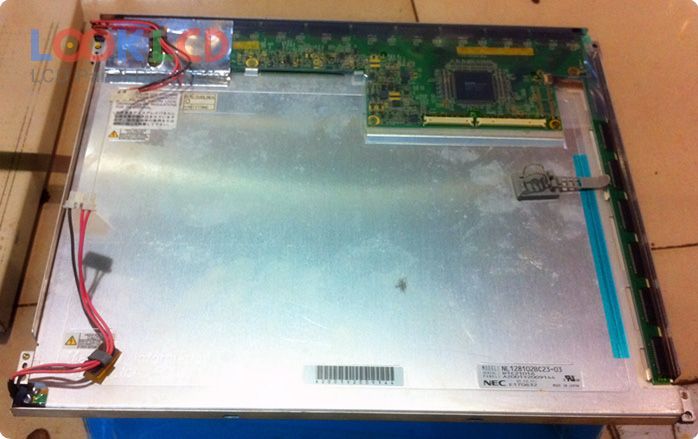

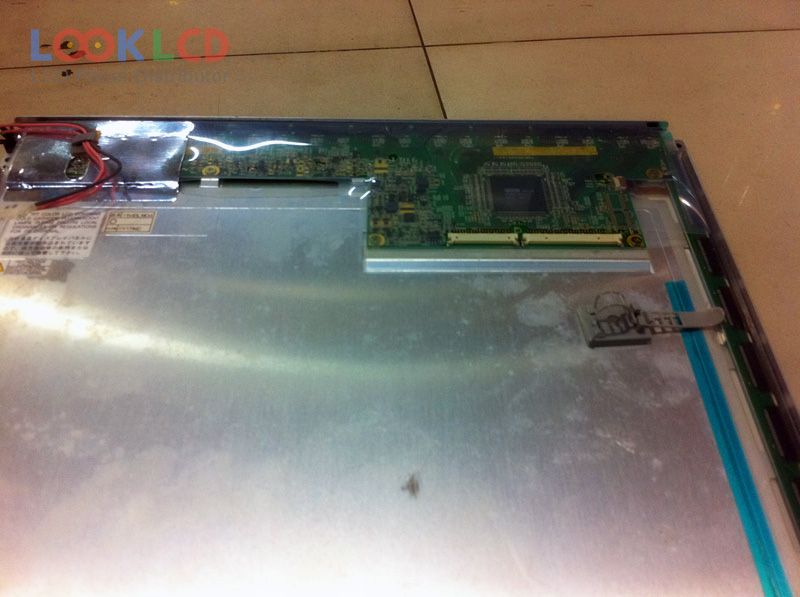

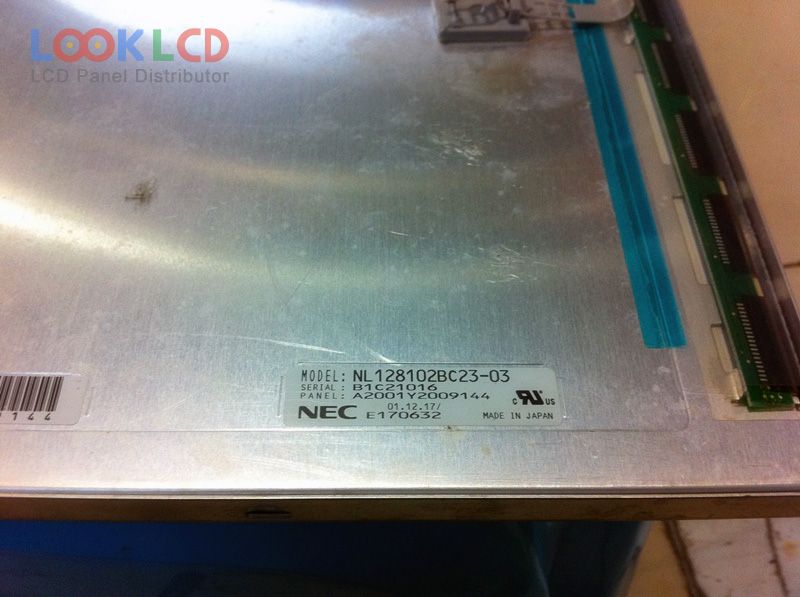

| Número de pieza | NL128102BC23-03 |
| Marca | NLT |
| Tamaño | 15.4 |
| Solicitud | DMPC |
| Resolución | 1280×1024 |
| Composición | LCM |
| Brillo | 240 |
| CR | 250:1 |
| Colores | 16.2M |
| Iluminar desde el fondo | CCFL |
| Interfaz | LVDS |
| marca de paneles | NEC |
| modelo de panel | NL128102BC23-03 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 15.4 inch |
| resolución | 1280(RGB)×1024 , SXGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 305.28×244.224 mm |
| describir | 340×269 mm |
| superficie | Hard coating (3H), Antireflection |
| brillo | 240 cd/m² (Typ.) |
| relación de contraste | 250:1 (Typ.) |
| mostrar colores | 16.2M (6-bit + FRC), CIE193160% |
| tiempo de respuesta | 6/41 (Typ.)(Tr/Td) |
| ángulo de visión | 70/70/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 4 pcsCCFLWithout Driver |
| interfaz de señal | LVDS (2 ch, 8-bit), 50 pins |
| voltaje de entrada | 12.0V (Typ.) |
| solicitud | DMPC |
| LTN154P1-L01 | Samsung | 15.4 | 1680×1050 |
| LTN154W1-L01 | Samsung | 15.4 | 1440×900 |
| NL128102AC23-01 | NLT | 15.4 | 1280×1024 |
| NL128102AC28-07 | NLT | 18.1 | 1280×1024 |
| NL128102AC29-17 | NLT | 19.0 | 1280×1024 |
| NL128102BC23-03 | NLT | 15.4 | 1280×1024 |
| NL128102BC29-01 | NLT | 19.0 | 1280×1024 |
| NL128102BC29-01B | NLT | 19.0 | 1280×1024 |
| NL128102BC29-01C | NLT | 19.0 | 1280×1024 |
| NL128102BM29-05A | NLT | 19.0 | 1280×1024 |
| LC215DTCA | PANDA | 21.5 | 1920×1080 |
| LM150X08-A4KD | LG Display | 15.0 | 1024×768 |
| LM220WE1-TLB2 | LG Display | 22.0 | 1680×1050 |
| LM270WF5-SSA1 | LG Display | 27.0 | 1920×1080 |
| LQ150X1LCD3 | SHARP | 15.0 | 1024×768 |
| LTM190E4-L03 | Samsung | 19.0 | 1280×1024 |
| LTM190EX-L21 | Samsung | 19.0 | 1280×1024 |
| M195FGE-L20 | Innolux | 19.5 | 1600×900 |
| M215HJJ-L30 Rev.B1 | Innolux | 21.5 | 1920×1080 |
| NL160120BC27-09 | NLT | 21.3 | 1600×1200 |
