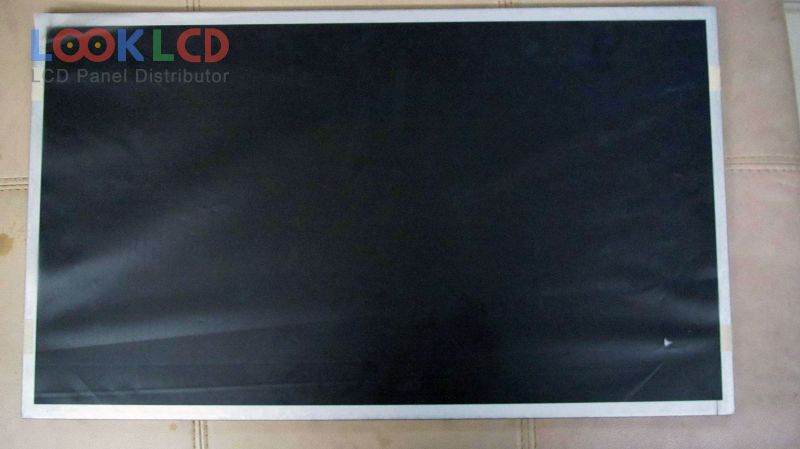

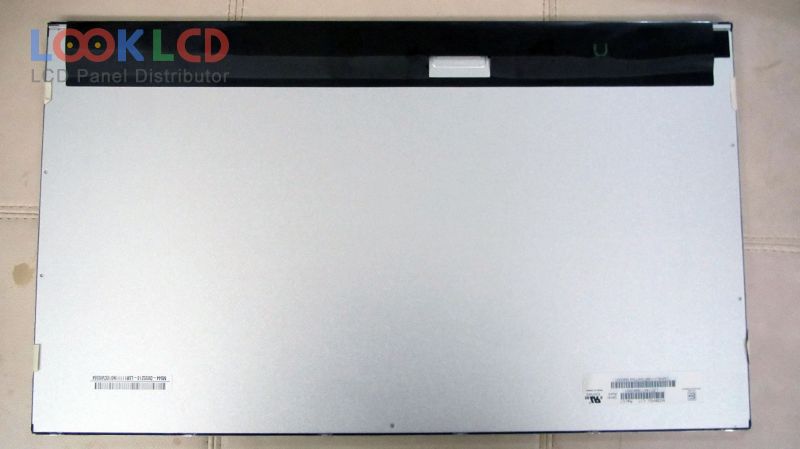

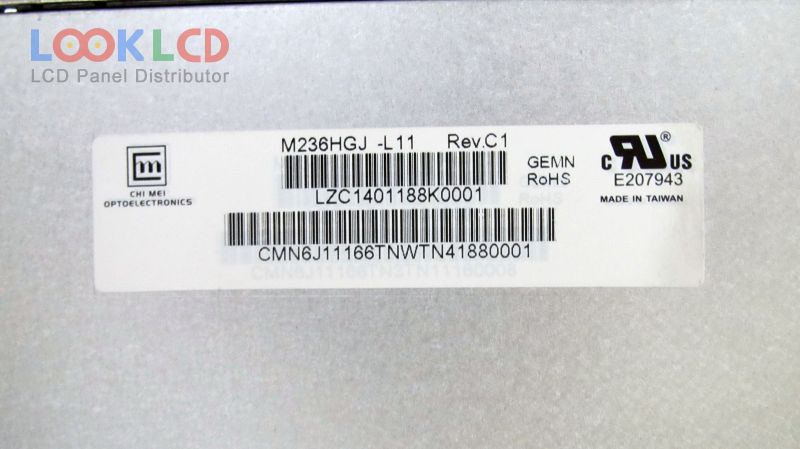

| Número de pieza | M236HGJ-L11 |
| Marca | Innolux |
| Tamaño | 23.6 |
| Solicitud | DMPC |
| Resolución | 1920×1080 |
| Composición | LCM |
| Brillo | 300 |
| CR | 1000:1 |
| Colores | 16.7M |
| Iluminar desde el fondo | WLED |
| Interfaz | LVDS |
| marca de paneles | CHIMEI INNOLUX |
| modelo de panel | M236HGJ-L11 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 23.6 inch |
| resolución | 1920(RGB)×1080 , FHD |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 521.28×293.22 mm |
| describir | 544.8×320.5 mm |
| superficie | Antiglare (Haze 25%), Hard coating (3H) |
| brillo | 300 cd/m² (Typ.) |
| relación de contraste | 1000:1 (Typ.) |
| mostrar colores | 16.7M (8-bit), CIE193172% |
| tiempo de respuesta | 1.5/3.5 (Typ.)(Tr/Td) |
| ángulo de visión | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | WLEDWithout Driver |
| interfaz de señal | LVDS (2 ch, 8-bit), 30 pins |
| voltaje de entrada | 5.0V (Typ.) |
| solicitud | DMPC |
