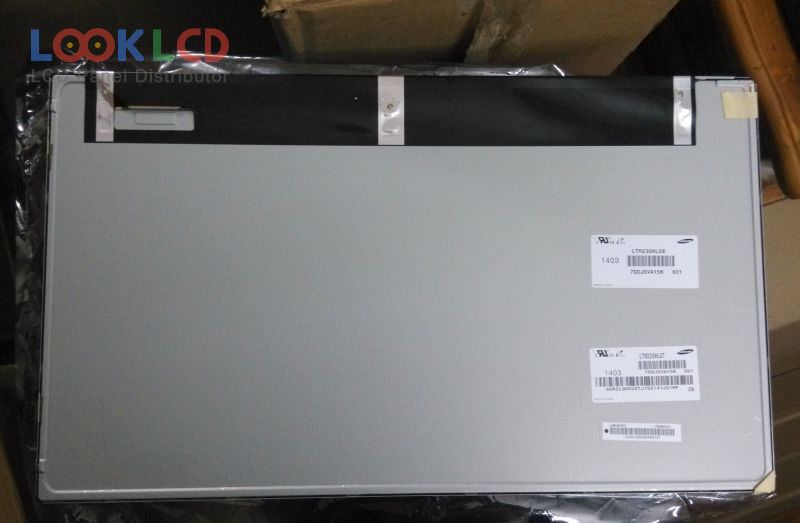

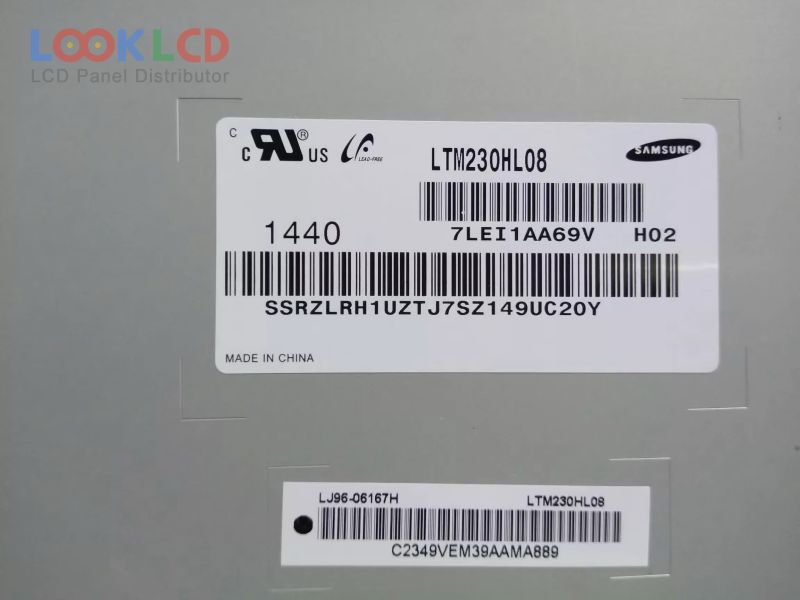

| Número de pieza | LTM230HL08 |
| Marca | Samsung |
| Tamaño | 23.0 |
| Solicitud | DMPC |
| Resolución | 1920×1080 |
| Composición | LCM |
| Brillo | 250 |
| CR | 1000:1 |
| Colores | 16.7M |
| Iluminar desde el fondo | WLED |
| Interfaz | LVDS |
| marca de paneles | SAMSUNG |
| modelo de panel | LTM230HL08 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 23.0 inch |
| resolución | 1920(RGB)×1080 , FHD |
| modo de visualización | PLS, Normally Black, Transmissive |
| área activa | 509.184×286.416 mm |
| describir | 533.2×312×11 mm |
| superficie | Antiglare (Haze 25%), Hard coating (3H) |
| brillo | 250 cd/m² (Typ.) |
| relación de contraste | 1000:1 (Typ.) |
| mostrar colores | 16.7M (6-bit + Hi-FRC), CIE193172% |
| tiempo de respuesta | 12 (Typ.)(G to G) |
| ángulo de visión | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 12S3PWLEDWithout Driver |
| interfaz de señal | LVDS (2 ch, 8-bit), 30 pins |
| voltaje de entrada | 5.0V (Typ.) |
| solicitud | DMPC |
