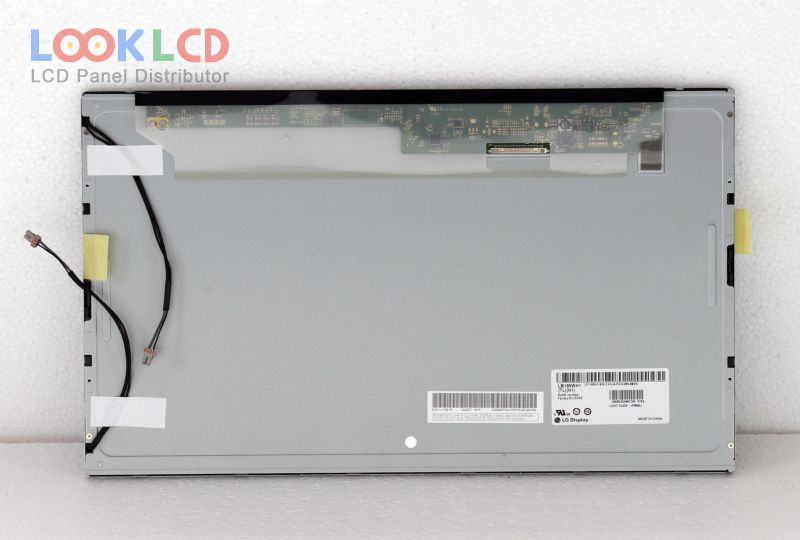

| Número de pieza | LM185WH1-TLH1 |
| Marca | LG Display |
| Tamaño | 18.5 |
| Solicitud | DMPC |
| Resolución | 1366×768 |
| Composición | LCM |
| Brillo | 200 |
| CR | 600:1 |
| Colores | 16.7M |
| Iluminar desde el fondo | CCFL |
| Interfaz | LVDS |
| marca de paneles | LG Display |
| modelo de panel | LM185WH1-TLH1 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 18.5 inch |
| resolución | 1366(RGB)×768 , WXGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 409.8×230.4 mm |
| describir | 430.4×254.6×13.5 mm |
| superficie | Antiglare, Hard coating (3H) |
| brillo | 200 cd/m² (Typ.) |
| relación de contraste | 600:1 (Typ.) |
| mostrar colores | 16.7M (6-bit + Hi-FRC), CIE193160% |
| tiempo de respuesta | 1.1/3.9 (Typ.)(Tr/Td) |
| ángulo de visión | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 2 pcsCCFLWithout Driver |
| interfaz de señal | LVDS (1 ch, 8-bit), 30 pins |
| voltaje de entrada | 5.0V (Typ.) |
| solicitud | DMPC |
