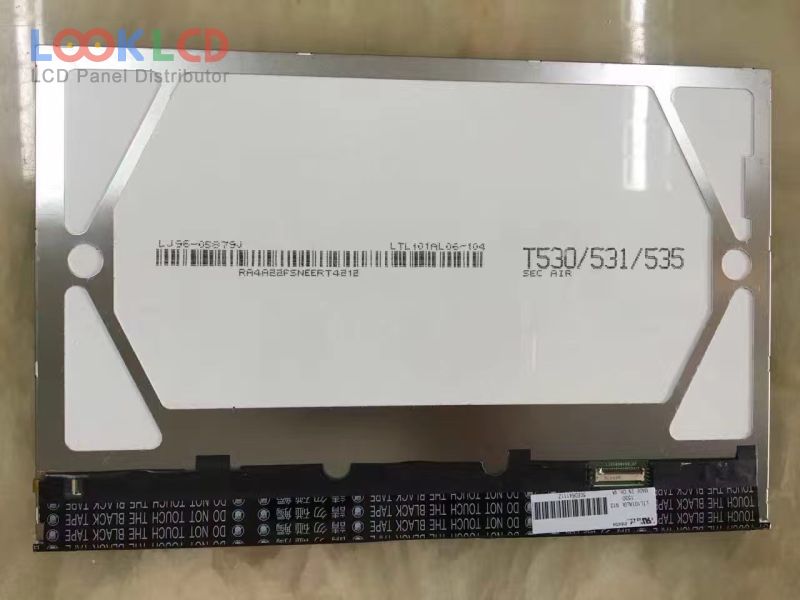

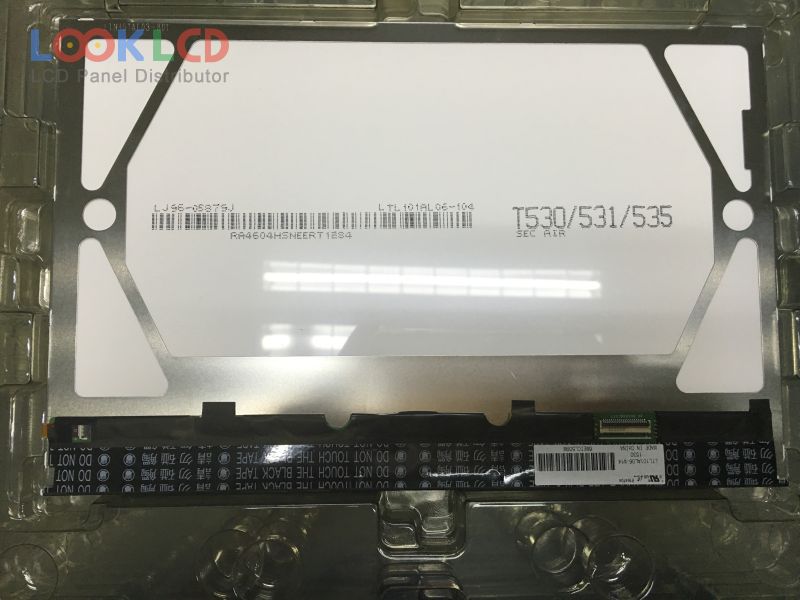

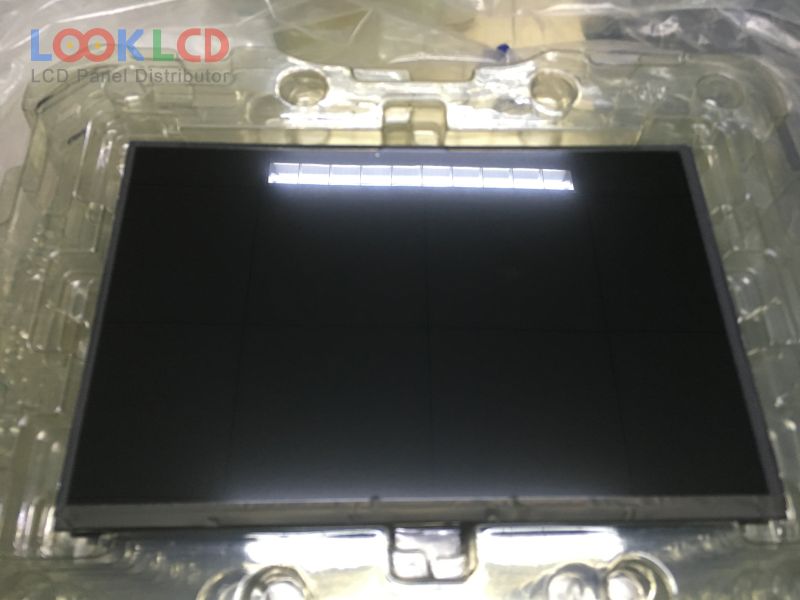

| Número de pieza | LTL101AL06-104 |
| Marca | Samsung |
| Tamaño | 10.1 |
| Solicitud | PAD |
| Resolución | 1280×800 |
| Composición | LCM |
| Brillo | 450 |
| CR | 900:1 |
| Colores | 16.2M |
| Iluminar desde el fondo | WLED |
| Interfaz | LVDS |
| marca de paneles | SAMSUNG |
| modelo de panel | LTL101AL06-104 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 10.1 inch |
| resolución | 1280(RGB)×800 , WXGA |
| modo de visualización | PLS, Normally Black, Transmissive |
| área activa | 216.96×135.6 mm |
| describir | 228.21×148.86×4.59 mm |
| superficie | Hard coating (3H) |
| brillo | 450 cd/m² (Typ.) |
| relación de contraste | 900:1 (Typ.) |
| mostrar colores | 16.2M (6-bit + FRC), CIE193150% |
| tiempo de respuesta | 30 (Typ.)(Tr+Td) |
| ángulo de visión | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 4 stringsWLEDWithout Driver |
| interfaz de señal | LVDS (1 ch, 8-bit), 45 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | PAD |
| LTL101AL01-W01 | Samsung | 10.1 | 1280×800 |
| LTL101AL02-T01 | Samsung | 10.1 | 1280×800 |
| LTL101AL03-W01 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-002 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-003 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-104 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-801 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-803 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-W02 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-W14 | Samsung | 10.1 | 1280×800 |
| BP096WX7-100 | BOE | 9.6 | 800×1280 |
| CLAA080WQ02 XG | CPT | 8.0 | 800×1280 |
| HV121P01-101 | HYDIS | 12.1 | 1400×1050 |
| HV121WX5-113 | HYDIS | 12.1 | 1280×800 |
| LP125WH2-SLB3 | LG Display | 12.5 | 1366×768 |
| LTL089CL02-W02 | Samsung | 8.9 | 1920×1200 |
| N080ICE-GB0 Rev.C2 | Innolux | 8.0 | 800×1280 |
| N101ICE-G62 | Innolux | 10.1 | 1280×800 |
| TV080WXM-NL0 | BOE | 8.0 | 800×1280 |
| VVX11F009G00 | Panasonic | 11.6 | 1920×1080 |
