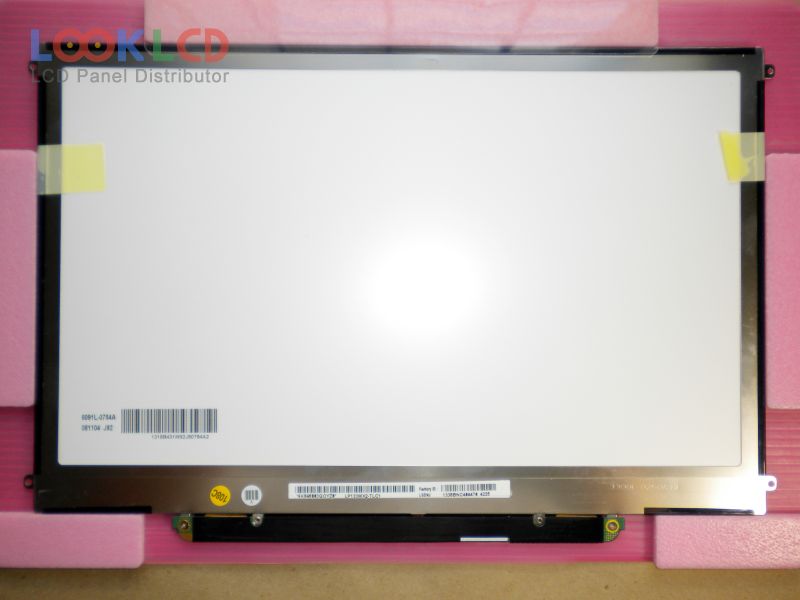

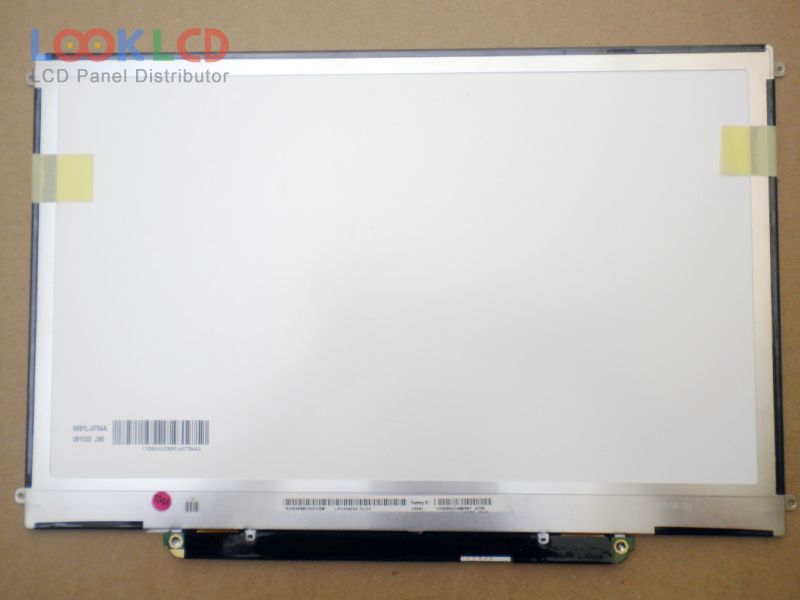

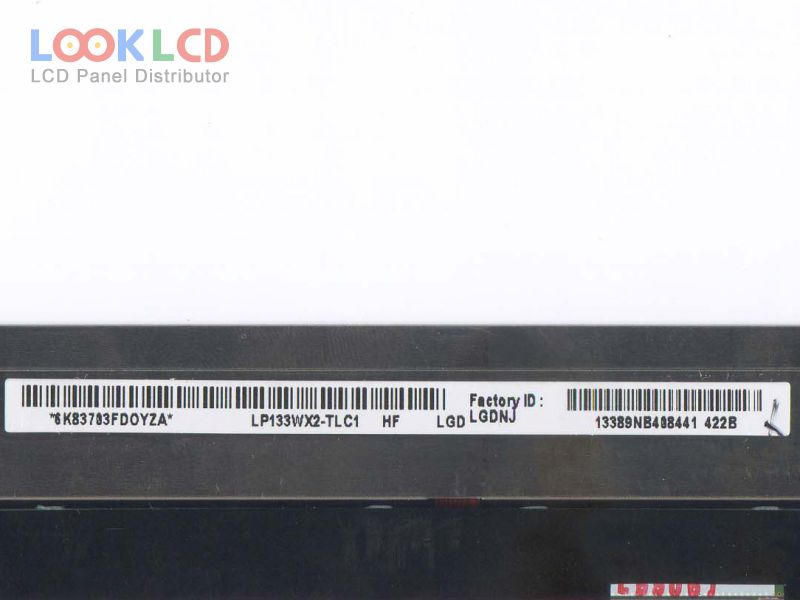

| Número de pieza | LP133WX2-TLC1 |
| Marca | LG Display |
| Tamaño | 13.3 |
| Solicitud | NBPC |
| Resolución | 1280×800 |
| Composición | LCM |
| Brillo | 275 |
| CR | 600:1 |
| Colores | 262K |
| Iluminar desde el fondo | WLED |
| Interfaz | LVDS |
| marca de paneles | LG.Philips LCD |
| modelo de panel | LP133WX2-TLC1 6 Compatible model |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 13.3 inch |
| resolución | 1280(RGB)×800 , WXGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 286.08×178.8 mm |
| describir | 307.38×203.1×3.6 mm |
| estilo de forma | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| superficie | Glare (Haze 0%), Hard coating (2H), Antireflection |
| brillo | 275 cd/m² (Typ.) |
| relación de contraste | 600:1 (Typ.) |
| mostrar colores | 262K (6-bit), CIE193145% |
| tiempo de respuesta | 16 (Typ.)(Tr+Td) |
| ángulo de visión | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 9S6PWLEDWithout Driver |
| interfaz de señal | LVDS (1 ch, 6-bit), 30 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | NBPC |
| LP133WH1-TLB1 | LG Display | 13.3 | 1366×768 |
| LP133WH2-SPA1 | LG Display | 13.3 | 1366×768 |
| LP133WH2-TLL2 | LG Display | 13.3 | 1366×768 |
| LP133WX1-TLB1 | LG Display | 13.3 | 1280×800 |
| LP133WX1-TLC1 | LG Display | 13.3 | 1280×800 |
| LP133WX2-TLA1 | LG Display | 13.3 | 1280×800 |
| LP133WX2-TLA2 | LG Display | 13.3 | 1280×800 |
| LP133WX2-TLG6 | LG Display | 13.3 | 1280×800 |
| LP133WX3-TLA2 | LG Display | 13.3 | 1280×800 |
| LP133WX3-TLA4 | LG Display | 13.3 | 1280×800 |
| B133XW03 V2 | AUO | 13.3 | 1366×768 |
| B140QAN01.1 | AUO | 14.0 | 2560×1440 |
| B156XW04 V5 | AUO | 15.6 | 1366×768 |
| CLAA154WB09A | CPT | 15.4 | 1280×800 |
| LP140WH1-TLA2 | LG Display | 14.0 | 1366×768 |
| LP154WX4-TLC5 | LG Display | 15.4 | 1280×800 |
| LP156WD1-TPB1 | LG Display | 15.6 | 1600×900 |
| LP171WP4-TLQ1 | LG Display | 17.1 | 1440×900 |
| LTN154X9-L02 | Samsung | 15.4 | 1280×800 |
| N141X6-L01 | Innolux | 14.1 | 1024×768 |
