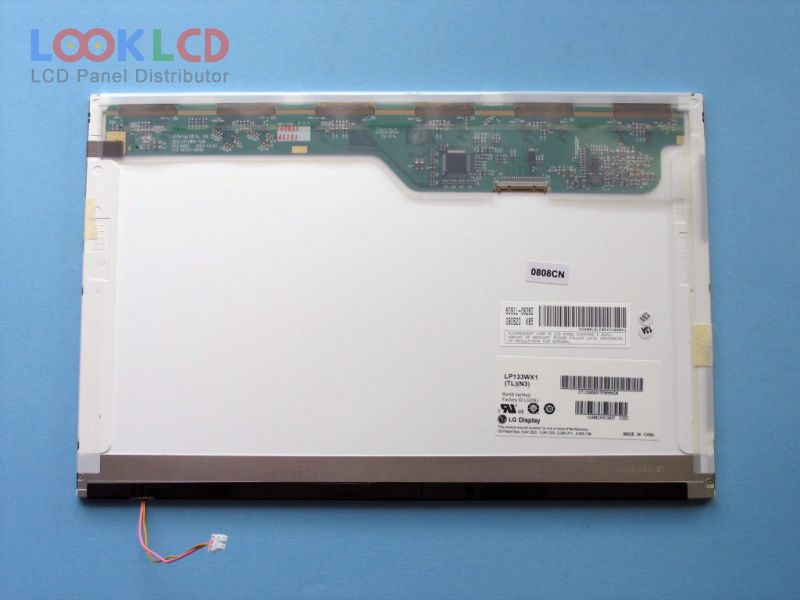

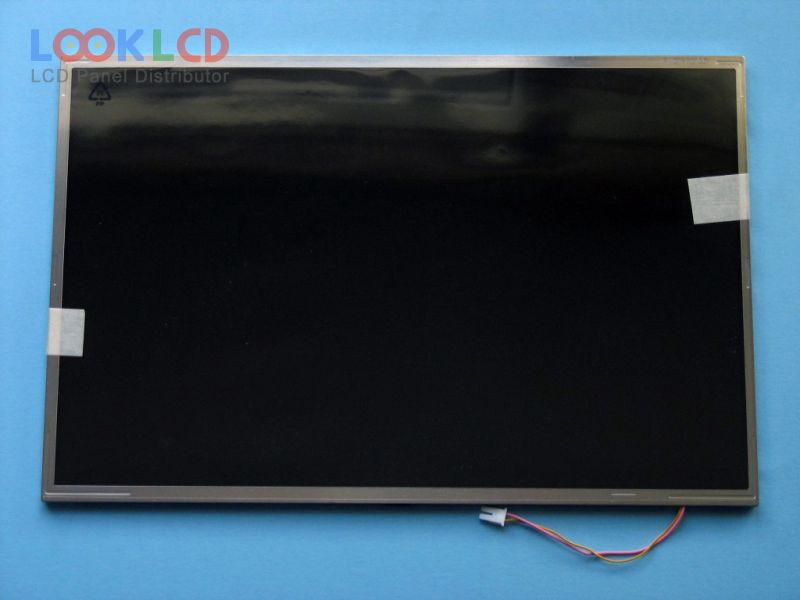

| Número de pieza | LP133WX1-TLN3 |
| Marca | LG Display |
| Tamaño | 13.3 |
| Solicitud | NBPC |
| Resolución | 1280×800 |
| Composición | LCM |
| Brillo | 250 |
| CR | 400:1 |
| Colores | 262K |
| Iluminar desde el fondo | CCFL |
| Interfaz | LVDS |
| marca de paneles | LG.Philips LCD |
| modelo de panel | LP133WX1-TLN3 5 Compatible model |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 13.3 inch |
| resolución | 1280(RGB)×800 , WXGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 286.08×178.8 mm |
| describir | 299×195×5.5 mm |
| estilo de forma | Wedge (PCBA Bent, Depth ≥5.2mm) |

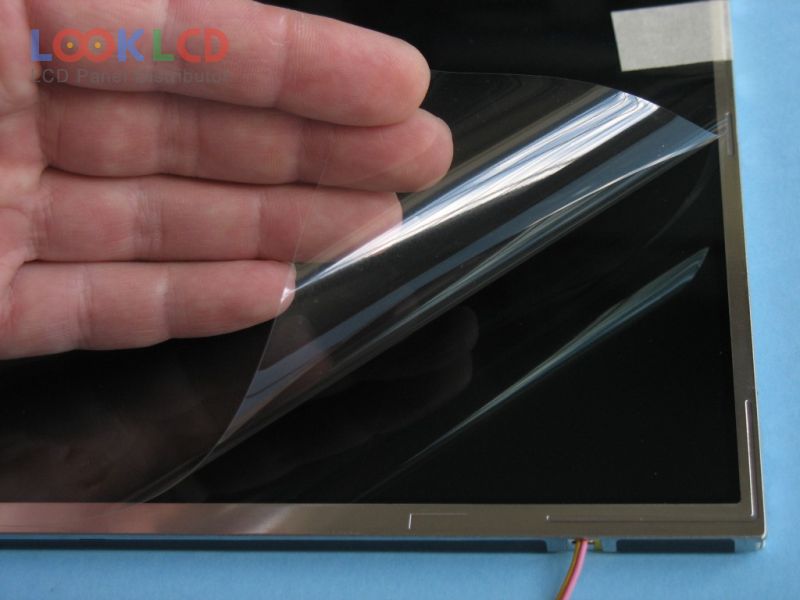

| superficie | Glare (Haze 0%), Hard coating (3H), Antireflection |
| brillo | 250 cd/m² (Typ.) |
| relación de contraste | 400:1 (Typ.) |
| mostrar colores | 262K (6-bit), CIE193145% |
| tiempo de respuesta | 25 (Typ.)(Tr+Td) |
| ángulo de visión | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 1 pcsCCFLWithout Driver |
| interfaz de señal | LVDS (1 ch, 6-bit), 20 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | NBPC |
| LP133WH2-TLA3 | LG Display | 13.3 | 1366×768 |
| LP133WH2-TLE1 | LG Display | 13.3 | 1366×768 |
| LP133WH2-TLN4 | LG Display | 13.3 | 1366×768 |
| LP133WP1-TJAA | LG Display | 13.3 | 1440×900 |
| LP133WX1-TLA1 | LG Display | 13.3 | 1280×800 |
| LP133WX2-TLA1 | LG Display | 13.3 | 1280×800 |
| LP133WX2-TLD1 | LG Display | 13.3 | 1280×800 |
| LP133WX2-TLGV | LG Display | 13.3 | 1280×800 |
| LP133WX3-TLA2 | LG Display | 13.3 | 1280×800 |
| LP133WX3-TLA6 | LG Display | 13.3 | 1280×800 |
| B125HAN01.0 | AUO | 12.5 | 1920×1080 |
| B133HAN02.5 | AUO | 13.3 | 1920×1080 |
| CLAA121UA01CW | CPT | 12.1 | 1600×900 |
| HB140WX1-100 | BOE | 14.0 | 1366×768 |
| LP154WU1-A1K3 | LG Display | 15.4 | 1920×1200 |
| LT133X8-122 | Samsung | 13.3 | 1024×768 |
| LTN154X3-L0D-G | Samsung | 15.4 | 1280×800 |
| LTN173HT02-T01 | Samsung | 17.3 | 1920×1080 |
| N121IB-L04 | Innolux | 12.1 | 1280×800 |
| NV156FHM-N42 | BOE | 15.6 | 1920×1080 |
