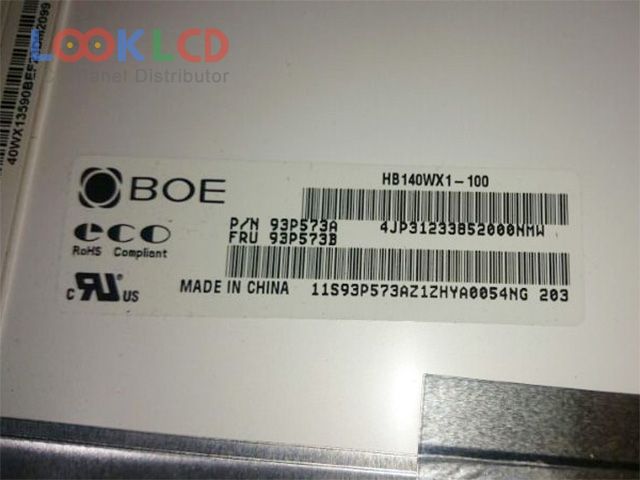

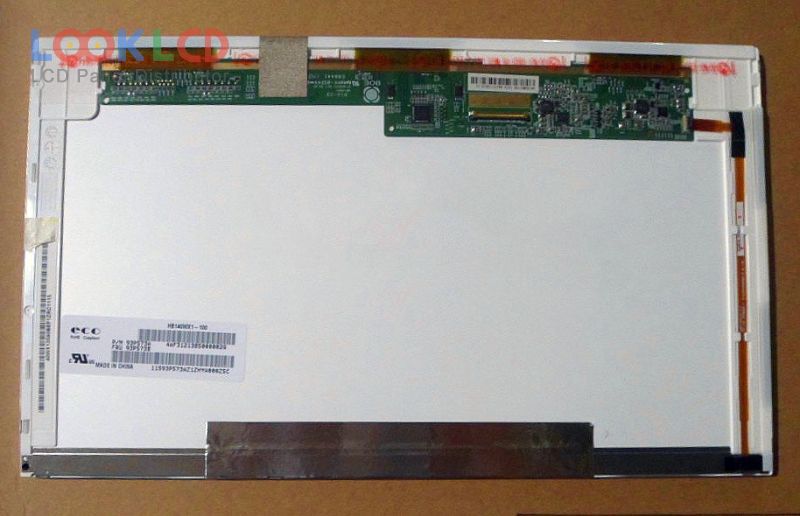

| Número de pieza | HB140WX1-100 |
| Marca | BOE |
| Tamaño | 14.0 |
| Solicitud | NBPC |
| Resolución | 1366×768 |
| Composición | LCM |
| Brillo | 200 |
| CR | 600:1 |
| Colores | 262K |
| Iluminar desde el fondo | WLED |
| Interfaz | LVDS |
| marca de paneles | BOE |
| modelo de panel | HB140WX1-100 4 Compatible model |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 14.0 inch |
| resolución | 1366(RGB)×768 , WXGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 309.399×173.952 mm |
| describir | 323.5×192×5.2 mm |
| estilo de forma | Wedge (PCBA Bent, Depth ≥5.2mm) |
| superficie | Glare (Haze 0%), Hard coating (3H) |
| brillo | 200 cd/m² (Typ.) |
| relación de contraste | 600:1 (Typ.) |
| mostrar colores | 262K (6-bit), CIE193150% |
| tiempo de respuesta | 8 (Typ.)(Tr+Td) |
| ángulo de visión | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 8S5PWLEDEmbedded (LED Driver) |
| interfaz de señal | LVDS (1 ch, 6-bit), 40 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | NBPC |
| HB140WH1-504 | BOE | 14.0 | 1366×768 |
| HB140WX1-100 | BOE | 14.0 | 1366×768 |
| HB140WX1-200 | BOE | 14.0 | 1366×768 |
| HB140WX1-300 | BOE | 14.0 | 1366×768 |
| HB140WX1-301 | BOE | 14.0 | 1366×768 |
| HB140WX1-400 | BOE | 14.0 | 1366×768 |
| HB140WX1-401 | BOE | 14.0 | 1366×768 |
| HB140WX1-500 | BOE | 14.0 | 1366×768 |
| HB140WX1-501 | BOE | 14.0 | 1366×768 |
| LP140WH1-TLB3 | LG Display | 14.0 | 1366×768 |
| B140XTN03.3 HW0A | AUO | 14.0 | 1366×768 |
| B140XW03 V1 | AUO | 14.0 | 1366×768 |
| B141EW05 V4 | AUO | 14.1 | 1280×800 |
| LP156WD1-TLA1 | LG Display | 15.6 | 1600×900 |
| LP171WE3-TLA5 | LG Display | 17.1 | 1680×1050 |
| LP173WF1-TLA1 | LG Display | 17.3 | 1920×1080 |
| LTN140AT20-P02 | Samsung | 14.0 | 1366×768 |
| LTN170BT11-D03 | Samsung | 17.0 | 1440×900 |
| N141C1-L01 | Innolux | 14.1 | 1440×900 |
| N156BGE-E21 | Innolux | 15.6 | 1366×768 |
