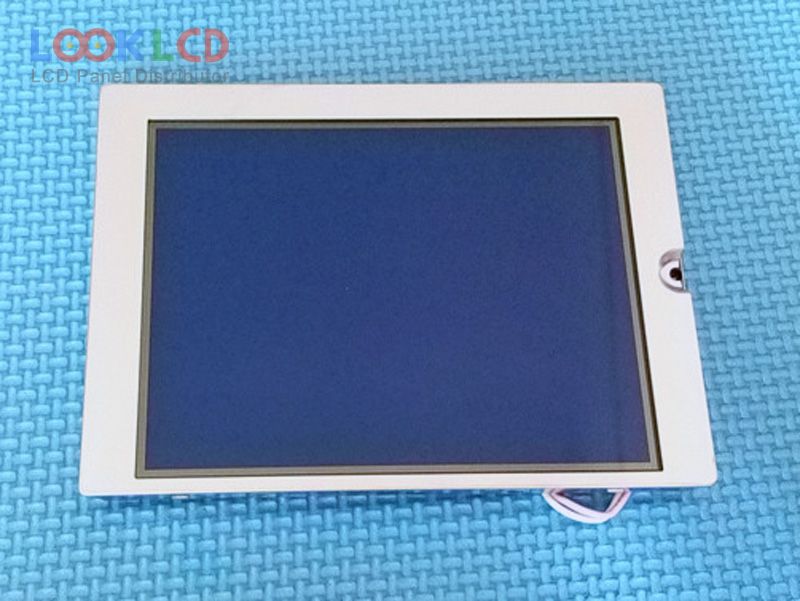

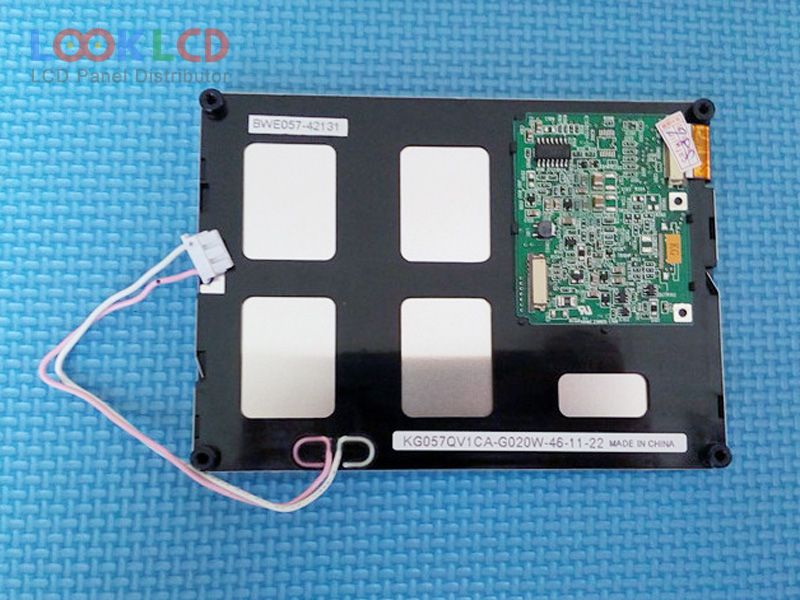

| Número de pieza | KG057QV1CA-G020W |
| Marca | Kyocera |
| Tamaño | 5.7 |
| Solicitud | IA |
| Resolución | 320×240 |
| Composición | LCM |
| Brillo | 260 |
| CR | 4:1 |
| Colores | Monochrome |
| Iluminar desde el fondo | CCFL |
| Interfaz | Parallel Data |
| marca de paneles | Kyocera |
| modelo de panel | KG057QV1CA-G020W |
| tipo de panel | STN-LCD , LCM |
| Tamaño del panel | 5.7 inch |
| resolución | 320×240 , QVGA |
| modo de visualización | STN, Blue mode (Negative), Transmissive |
| área activa | 115.18×86.38 mm |
| describir | 144×104.8×13.2 mm |
| superficie | Glare (Haze 0%) |
| brillo | 260 cd/m² (Typ.) |
| relación de contraste | 4:1 (Typ.) |
| mostrar colores | Monochrome |
| tiempo de respuesta | 380/120 (Typ.)(Tr/Td) |
| ángulo de visión | 45/45/20/40 (Typ.)(CR≥2)(L/R/U/D) |
| frecuencia | 75Hz |
| tipo de lámpara | 1 pcsCCFLOptional |
| interfaz de señal | Parallel Data (4-bit), 20 pins |
| voltaje de entrada | 3.3/5.0V (Typ.)(VDD) |
| solicitud | IA |
