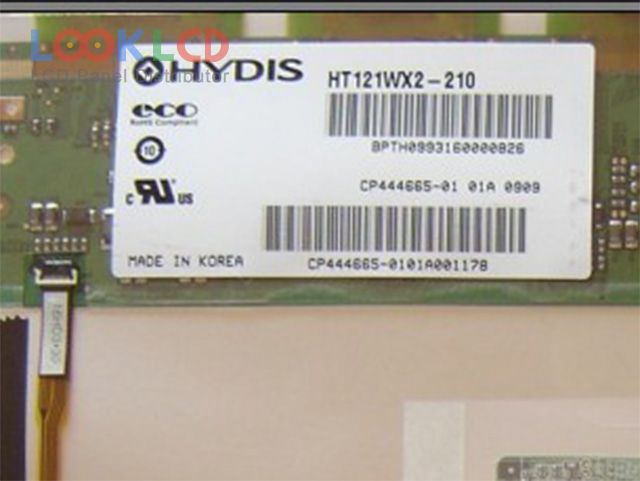

| Número de pieza | HT121WX2-210 |
| Marca | HYDIS |
| Tamaño | 12.1 |
| Solicitud | PAD |
| Resolución | 1280×800 |
| Composición | LCM |
| Brillo | 200 |
| CR | 600:1 |
| Colores | 262K |
| Iluminar desde el fondo | WLED |
| Interfaz | LVDS |
| marca de paneles | HYDIS |
| modelo de panel | HT121WX2-210 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 12.1 inch |
| resolución | 1280(RGB)×800 , WXGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 261.12×163.2 mm |
| describir | 276.8×180×6.8 mm |
| superficie | Glare (Haze 0%) |
| brillo | 200 cd/m² (Typ.) |
| relación de contraste | 600:1 (Typ.) |
| mostrar colores | 262K (6-bit) |
| tiempo de respuesta | 10/15 (Typ.)(Tr/Td) |
| ángulo de visión | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 12S4PWLEDEmbedded (LED Driver) |
| interfaz de señal | LVDS (1 ch, 6-bit), 40 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | PAD |
