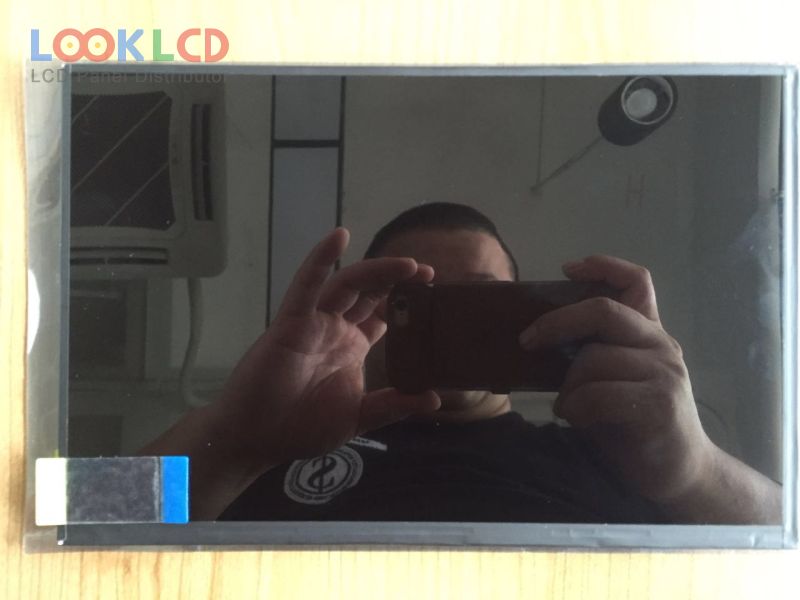

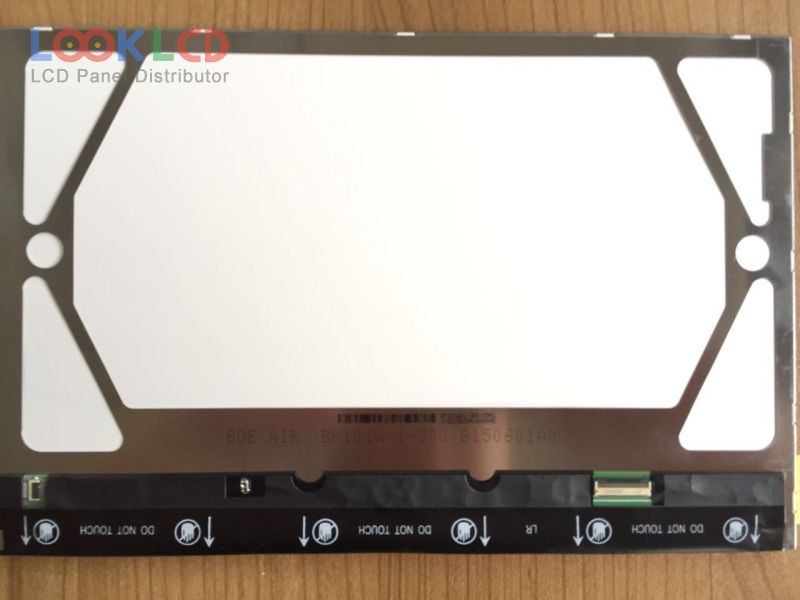

| Número de pieza | BP101WX1-300 |
| Marca | BOE |
| Tamaño | 10.1 |
| Solicitud | PAD |
| Resolución | 1280×800 |
| Composición | LCM |
| Brillo | 450 |
| CR | 900:1 |
| Colores | 16.7M |
| Iluminar desde el fondo | WLED |
| Interfaz | LVDS |
| marca de paneles | BOE |
| modelo de panel | BP101WX1-300 5 Compatible model |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 10.1 inch |
| resolución | 1280(RGB)×800 , WXGA |
| modo de visualización | ADS, Normally Black, Transmissive |
| área activa | 216.96×135.6 mm |
| describir | 228.21×148.86×4.59 mm |
| superficie | Hard coating (3H), Antireflection |
| brillo | 450 cd/m² (Typ.) |
| relación de contraste | 900:1 (Typ.) |
| mostrar colores | 16.7M (6-bit + Hi-FRC), CIE193153% |
| tiempo de respuesta | 25 (Typ.)(Tr+Td) |
| ángulo de visión | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 4 stringsWLEDWithout Driver |
| interfaz de señal | LVDS (1 ch, 8-bit), 45 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | PAD |
| B101EW05 V0 | AUO | 10.1 | 1280×800 |
| BP101WX1-100 | BOE | 10.1 | 1280×800 |
| BP101WX1-200 | BOE | 10.1 | 1280×800 |
| BP101WX1-206 | BOE | 10.1 | 1280×800 |
| BP101WX1-210 | BOE | 10.1 | 1280×800 |
| BP101WX1-300 | BOE | 10.1 | 1280×800 |
| BP101WX1-400 | BOE | 10.1 | 1280×800 |
| LP101WH4-SLP2 | LG Display | 10.1 | 1366×768 |
| LTL101AL06-801 | Samsung | 10.1 | 1280×800 |
| P101KDA-AP1 | Innolux | 10.1 | 1200×1920 |
| AT090TN23 | Innolux | 9.0 | 1280×800 |
| B101EAN01.2 | AUO | 10.1 | 1280×800 |
| B101UAN02.1 | AUO | 10.1 | 1920×1200 |
| EJ101IA-01C | Innolux | 10.1 | 1280×800 |
| HE070IA-04M | Innolux | 7.0 | 800×1280 |
| HT12X21-221 | HYDIS | 12.1 | 1024×768 |
| HV121WX4-120 | HYDIS | 12.1 | 1280×800 |
| LQ104X2LX05A | SHARP | 10.4 | 1024×768 |
| LTL101AL06-002 | Samsung | 10.1 | 1280×800 |
| PJ101IA-01A | Innolux | 10.1 | 1280×800 |
