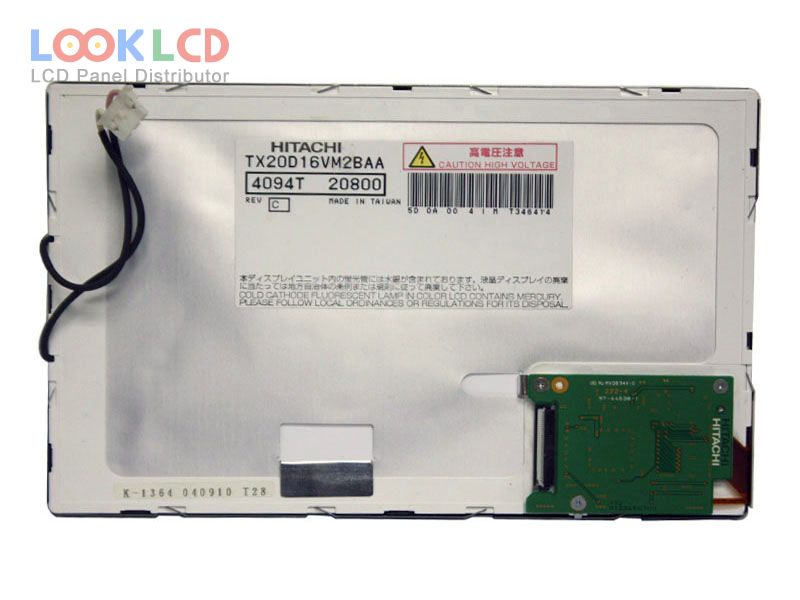

| Número de pieza | TX20D16VM2BAA |
| Marca | KOE |
| Tamaño | 8.0 |
| Solicitud | IA |
| Resolución | 800×480 |
| Composición | LCM |
| Brillo | 350 |
| CR | 200:1 |
| Colores | 262K |
| Iluminar desde el fondo | CCFL |
| Interfaz | TTL |
| marca de paneles | HITACHI |
| modelo de panel | TX20D16VM2BAA |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 8.0 inch |
| resolución | 800(RGB)×480 , WVGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 174×104.4 mm |
| describir | 189×120 mm |
| superficie | Antiglare |
| brillo | 350 cd/m² (Typ.) |
| relación de contraste | 200:1 (Typ.) |
| mostrar colores | 262K (6-bit), CIE193160% |
| tiempo de respuesta | 20/10 (Typ.)(Tr/Td) |
| ángulo de visión | 50/50/50/50 (Min.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 1 pcsCCFLWithout Driver |
| interfaz de señal | CMOS (1 ch, 6-bit), 40 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | IA |
