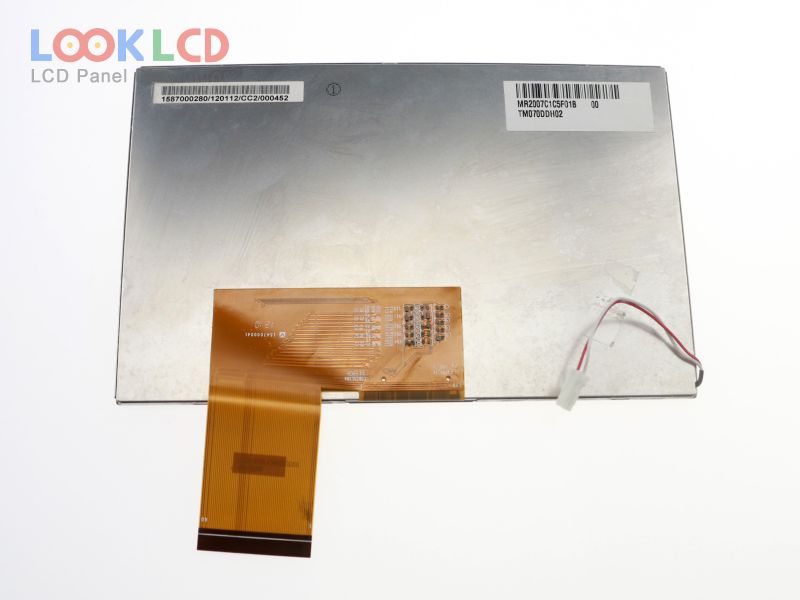

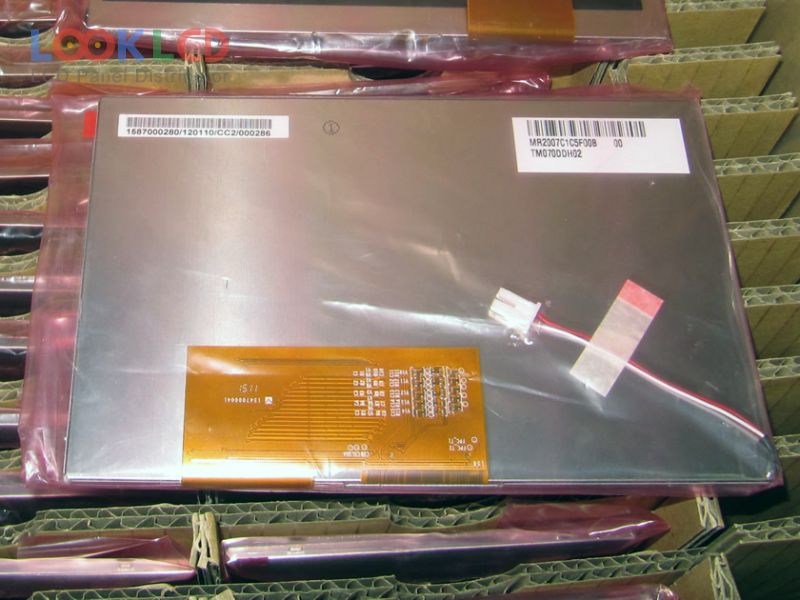

| Número de pieza | TM070DDH02 |
| Marca | Tianma |
| Tamaño | 7.0 |
| Solicitud | MP4 |
| Resolución | 1024×600 |
| Composición | LCM |
| Brillo | 250 |
| CR | 500:1 |
| Colores | 16.7M |
| Iluminar desde el fondo | WLED |
| Interfaz | TTL |
| marca de paneles | AVIC |
| modelo de panel | TM070DDH02 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 7.0 inch |
| resolución | 1024(RGB)×600 , WSVGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 153.6×90 mm |
| describir | 165.75×105.39×3.7 mm |
| superficie | Antiglare |
| brillo | 250 cd/m² (Typ.) |
| relación de contraste | 500:1 (Typ.) |
| mostrar colores | 16.7M (8-bit), CIE193150% |
| tiempo de respuesta | 20 (Typ.)(Tr+Td) |
| ángulo de visión | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 3S6PWLEDWithout Driver |
| interfaz de señal | Parallel RGB (1 ch, 8-bit), 60 pins |
| voltaje de entrada | 3.3/11/20/-6.8V (Typ.)(VCC/AVDD/VGH/VGL) |
| solicitud | MP4 |
