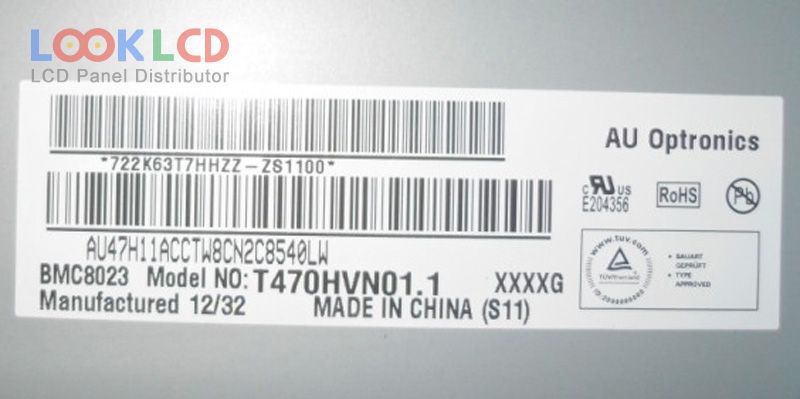

| Número de pieza | T470HVN01.1 |
| Marca | AUO |
| Tamaño | 47 |
| Solicitud | LCTV |
| Resolución | 1920×1080 |
| Composición | LCM |
| Brillo | 350 |
| CR | 3000:1 |
| Colores | 16.7M |
| Iluminar desde el fondo | WLED |
| Interfaz | LVDS |
| marca de paneles | AUO |
| modelo de panel | T470HVN01.1 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 47 inch |
| resolución | 1920(RGB)×1080 , FHD |
| modo de visualización | AMVA, Normally Black, Transmissive |
| área activa | 1039.68×584.82 mm |
| describir | 1070.6×622 mm |
| superficie | Antiglare (Haze 2%), Hard coating (3H) |
| brillo | 350 cd/m² (Typ.) |
| relación de contraste | 3000:1 (Typ.) |
| mostrar colores | 16.7M (8-bit), CIE193172% |
| tiempo de respuesta | 6.5 (Typ.)(G to G) |
| ángulo de visión | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | WLEDEmbedded (LED Driver) |
| interfaz de señal | LVDS (2 ch, 8-bit), 51 pins |
| voltaje de entrada | 12.0V (Typ.) |
| solicitud | LCTV |
