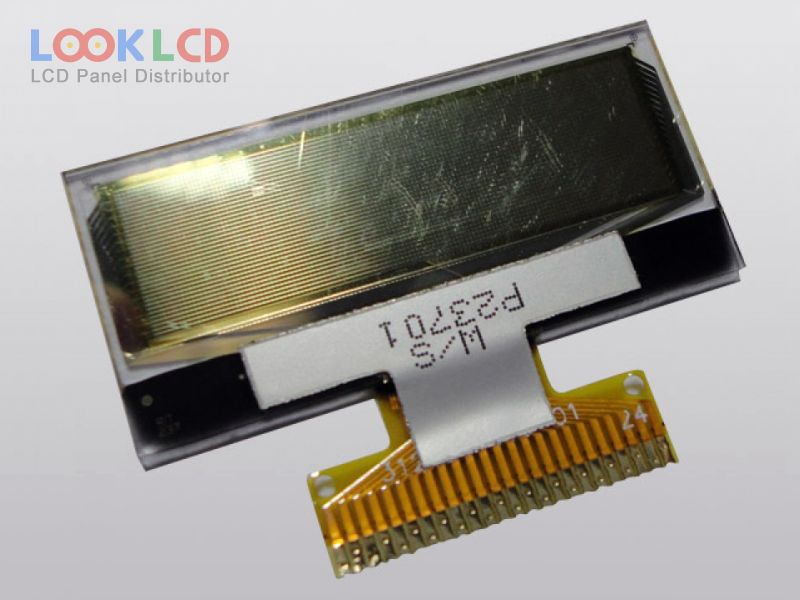

| Número de pieza | RGS11128036WR014 |
| Marca | RiTdisplay |
| Tamaño | 1.1 |
| Solicitud | |
| Resolución | 128×36 |
| Composición | OLED |
| Brillo | 600 |
| CR | 2000:1 |
| Colores | Mono(White) |
| Iluminar desde el fondo | self |
| Interfaz | CPU/SPI/I²C |
| marca de paneles | RiTdisplay |
| modelo de panel | RGS11128036WR014 |
| tipo de panel | PM-OLED , OLED |
| Tamaño del panel | 1.1 inch |
| resolución | 128×36 |
| área activa | 26.86×7.54 mm |
| describir | 31×14.3×1.1 mm |
| superficie | Without Polarizer |
| brillo | 600 cd/m² (Typ.) |
| relación de contraste | 2000 : 1 (Min.) |
| mostrar colores | Mono(White) (1-bit) |
| ángulo de visión | 80/80/80/80 (Min.)(L/R/U/D) |
| frecuencia | 105Hz |
| controlador ic | COG Built-in SPD0301 |
| interfaz de señal | 8-bit 6800/8080 parallel, SPI, I²C, 24 pins |
| voltaje de entrada | 12.0V (Typ.)(VCC) |
