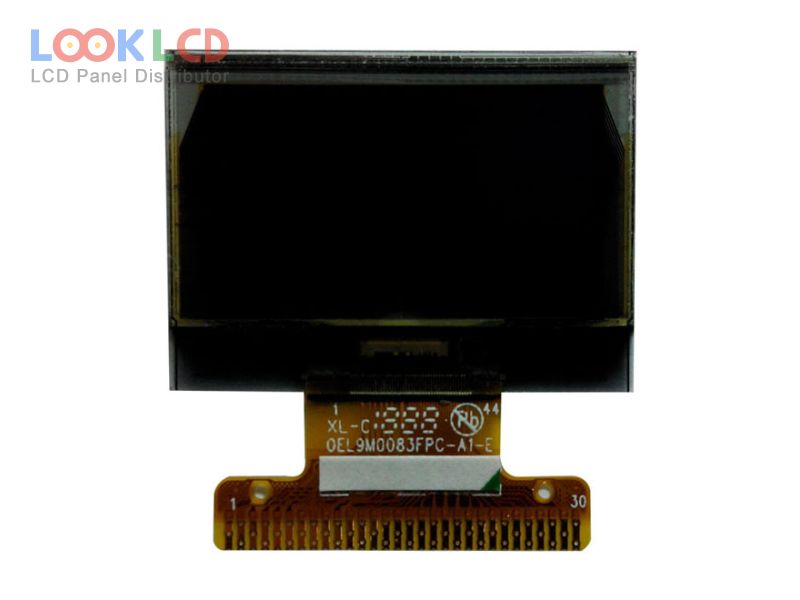

| Número de pieza | OEL9M0083-Y-E |
| Marca | Other |
| Tamaño | 0.96 |
| Solicitud | |
| Resolución | 128×64 |
| Composición | OLED |
| Brillo | |
| CR | 10000:1 |
| Colores | Mono(Yellow) |
| Iluminar desde el fondo | self |
| Interfaz | CPU/SPI/I²C |
| marca de paneles | TRULY |
| modelo de panel | OEL9M0083-Y-E |
| tipo de panel | PM-OLED , OLED |
| Tamaño del panel | 0.96 inch |
| resolución | 128×64 |
| área activa | 21.74×11.175 mm |
| describir | 26.7×19.26×1.65 mm |
| superficie | |
| brillo | |
| relación de contraste | 10000 : 1 (Min.) |
| mostrar colores | Mono(Yellow) (1-bit) |
| ángulo de visión | 80/80/80/80 (Min.)(L/R/U/D) |
| frecuencia | 100Hz |
| controlador ic | COG Built-in SH1106G |
| interfaz de señal | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
