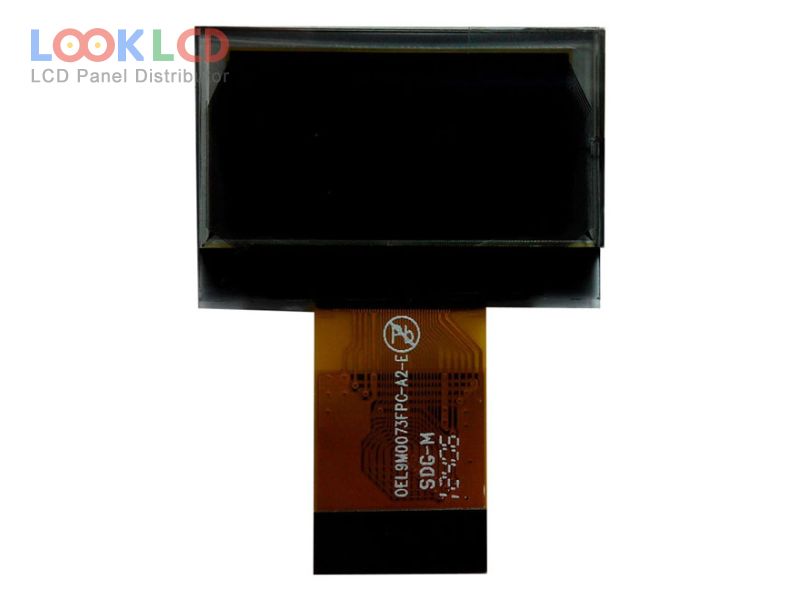

| Número de pieza | OEL9M0073-Y-E |
| Marca | Other |
| Tamaño | 1.0 |
| Solicitud | IA |
| Resolución | 128×64 |
| Composición | OLED |
| Brillo | 85 |
| CR | 10000:1 |
| Colores | Mono(Yellow) |
| Iluminar desde el fondo | self |
| Interfaz | CPU/SPI/I²C |
| marca de paneles | TRULY |
| modelo de panel | OEL9M0073-Y-E |
| tipo de panel | PM-OLED , OLED |
| Tamaño del panel | 1.0 inch |
| resolución | 128×64 |
| área activa | 23.02×11.82 mm |
| describir | 30×20.16×1.6 mm |
| superficie | |
| brillo | 85 cd/m² (Typ.) |
| relación de contraste | 10000 : 1 (Min.) |
| mostrar colores | Mono(Yellow) (1-bit) |
| ángulo de visión | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| controlador ic | COG Built-in SSD1308Z |
| interfaz de señal | CPU/SPI/I²C, 20 pins |
| solicitud | IA |
