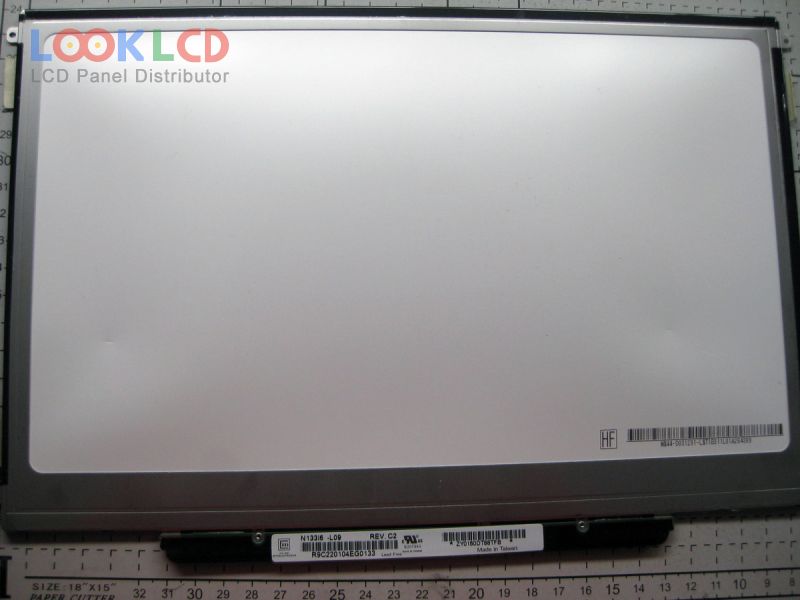

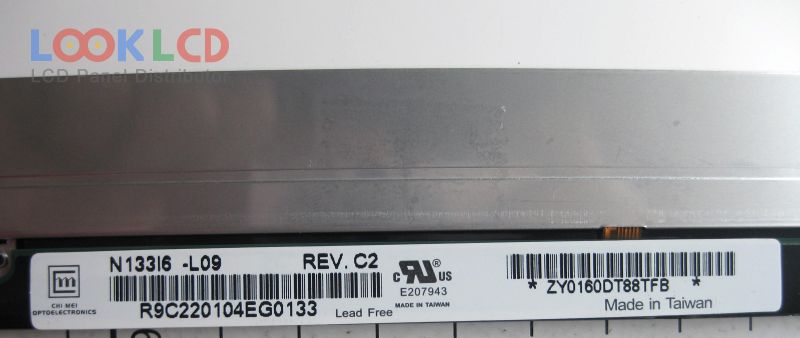

| Número de pieza | N133I6-L09 |
| Marca | Innolux |
| Tamaño | 13.3 |
| Solicitud | NBPC |
| Resolución | 1280×800 |
| Composición | LCM |
| Brillo | 290 |
| CR | 600:1 |
| Colores | 262K |
| Iluminar desde el fondo | WLED |
| Interfaz | LVDS |
| marca de paneles | CMO |
| modelo de panel | N133I6-L09 8 Compatible model |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 13.3 inch |
| resolución | 1280(RGB)×800 , WXGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 286.08×178.8 mm |
| describir | 307.87×203.2×3.68 mm |
| estilo de forma | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| superficie | Glare (Haze 0%), Hard coating (3H) |
| brillo | 290 cd/m² (Typ.) |
| relación de contraste | 600:1 (Typ.) |
| mostrar colores | 262K (6-bit) |
| tiempo de respuesta | 3/7 (Typ.)(Tr/Td) |
| ángulo de visión | 70/70/55/55 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 6 stringsWLEDWithout Driver |
| interfaz de señal | LVDS (1 ch, 6-bit), 30 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | NBPC |
