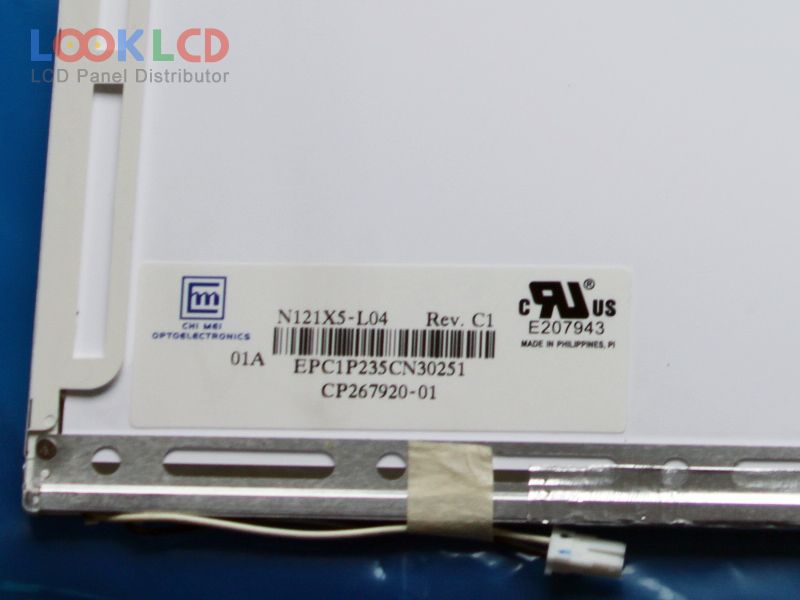

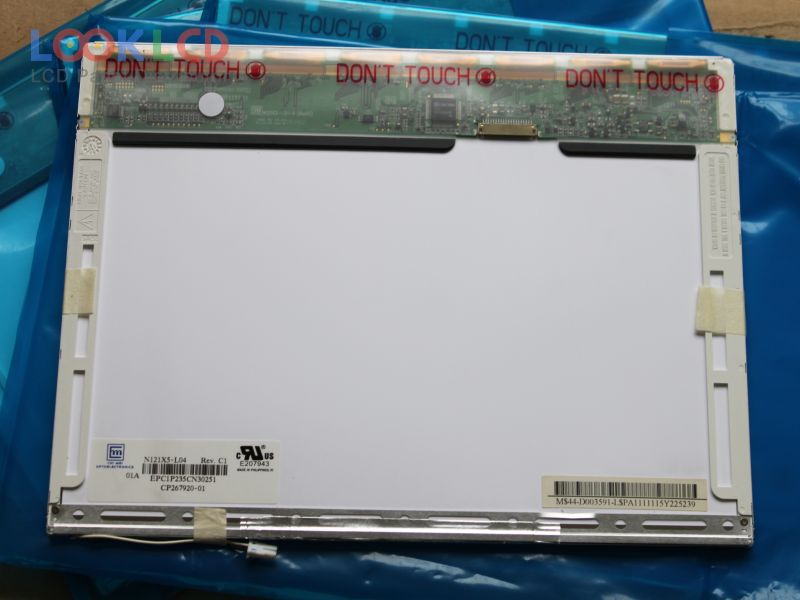

| Número de pieza | N121X5-L04 |
| Marca | Innolux |
| Tamaño | 12.1 |
| Solicitud | NBPC |
| Resolución | 1024×768 |
| Composición | LCM |
| Brillo | 175 |
| CR | 500:1 |
| Colores | 262K |
| Iluminar desde el fondo | CCFL |
| Interfaz | LVDS |
| marca de paneles | CMO |
| modelo de panel | N121X5-L04 6 Compatible model |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 12.1 inch |
| resolución | 1024(RGB)×768 , XGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 245.76×184.32 mm |
| describir | 261×198×5 mm |
| superficie | Antiglare (Haze 25%), Hard coating (3H) |
| brillo | 175 cd/m² (Typ.) |
| relación de contraste | 500:1 (Typ.) |
| mostrar colores | 262K (6-bit), CIE193145% |
| tiempo de respuesta | 5/11 (Typ.)(Tr/Td) |
| ángulo de visión | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 1 pcsCCFLWithout Driver |
| interfaz de señal | LVDS (1 ch, 6-bit), 20 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | NBPC |
| B121EW09 V2 | AUO | 12.1 | 1280×800 |
| HV121WX5-114 | HYDIS | 12.1 | 1280×800 |
| LMG9980ZWCC-01 | KOE | 12.1 | 800×600 |
| LQ121S1DC71 | SHARP | 12.1 | 800×600 |
| LTN121AT02-A01 | Samsung | 12.1 | 1280×800 |
| N121X5-L04 | Innolux | 12.1 | 1024×768 |
| N121X5-L06 | Innolux | 12.1 | 1024×768 |
| NL8060BC31-13A | NLT | 12.1 | 800×600 |
| TM121SV-A01 | SANYO | 12.1 | 800×600 |
| TM121XG-02L01 | SANYO | 12.1 | 1024×768 |
| B140XW02 V1 | AUO | 14.0 | 1366×768 |
| B156HW01 V1 | AUO | 15.6 | 1920×1080 |
| LP101WH1-TLB2 | LG Display | 10.1 | 1366×768 |
| LP154WX5-TLC2 | LG Display | 15.4 | 1280×800 |
| LP156WF4-SLB1 | LG Display | 15.6 | 1920×1080 |
| LP171WP4-TLR1 | LG Display | 17.1 | 1440×900 |
| LQ133M1JW03 | SHARP | 13.3 | 1920×1080 |
| LTN121AT11-803 | Samsung | 12.1 | 1280×800 |
| LTN156AT17-D01 | Samsung | 15.6 | 1366×768 |
| LTN156HT02-B01 | Samsung | 15.6 | 1920×1080 |
