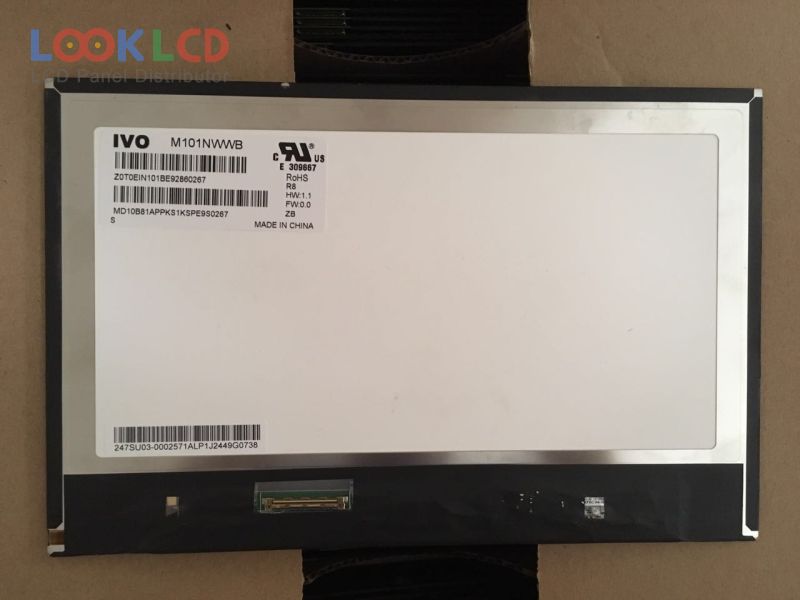

| Número de pieza | M101NWWB R8 |
| Marca | IVO |
| Tamaño | 10.1 |
| Solicitud | PAD |
| Resolución | 1280×800 |
| Composición | LCM |
| Brillo | 350 |
| CR | 800:1 |
| Colores | 16.7M |
| Iluminar desde el fondo | WLED |
| Interfaz | LVDS |
| marca de paneles | IVO |
| modelo de panel | M101NWWB R8 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 10.1 inch |
| resolución | 1280(RGB)×800 , WXGA |
| modo de visualización | IPS, Normally Black, Transmissive |
| área activa | 216.96×135.6 mm |
| describir | 229.46×149.1×4.56 mm |
| superficie | Glare (Haze 0%), Hard coating |
| brillo | 350 cd/m² (Typ.) |
| relación de contraste | 800:1 (Typ.) |
| mostrar colores | 16.7M (8-bit), CIE193145% |
| tiempo de respuesta | 25 (Typ.)(Tr+Td) |
| ángulo de visión | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | WLEDWithout Driver |
| interfaz de señal | LVDS (1 ch, 8-bit), 40 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | PAD |
