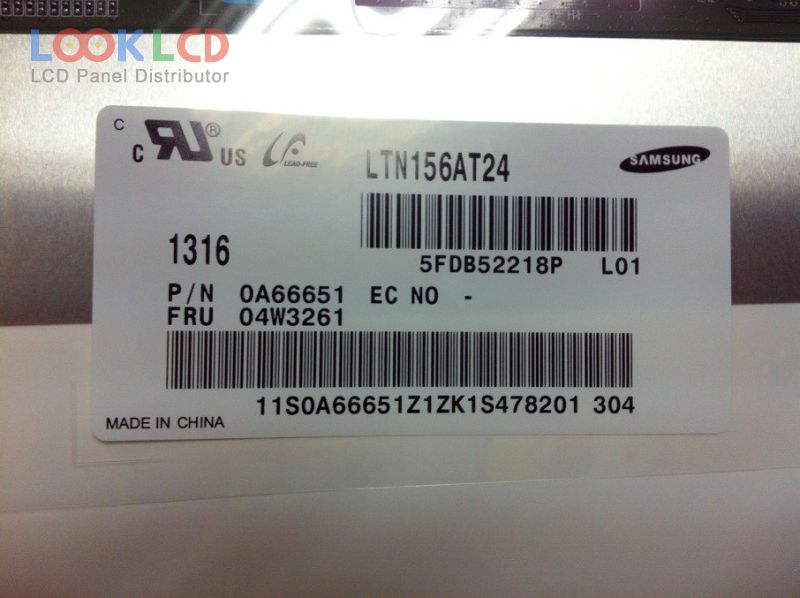

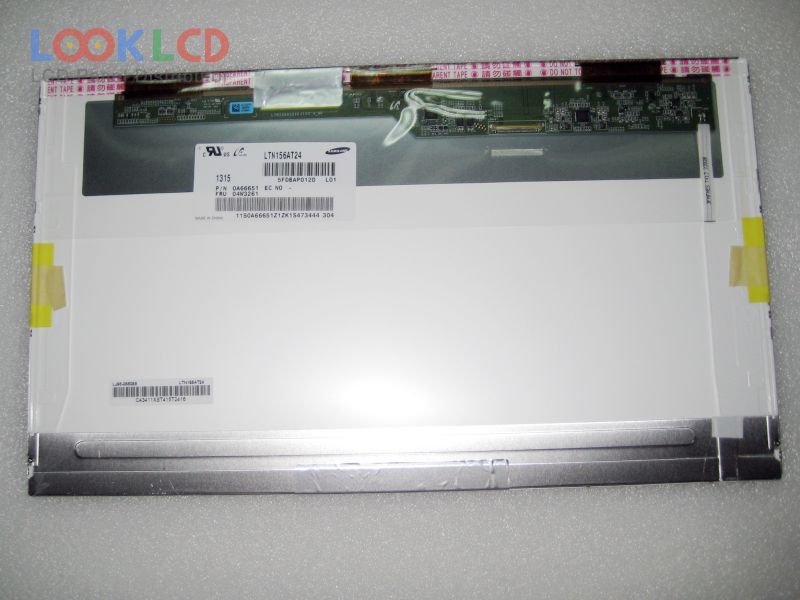

| Número de pieza | LTN156AT24-L01 |
| Marca | Samsung |
| Tamaño | 15.6 |
| Solicitud | NBPC |
| Resolución | 1366×768 |
| Composición | LCM |
| Brillo | 220 |
| CR | 500:1 |
| Colores | 262K |
| Iluminar desde el fondo | WLED |
| Interfaz | LVDS |
| marca de paneles | SAMSUNG |
| modelo de panel | LTN156AT24-L01 61 Compatible model |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 15.6 inch |
| resolución | 1366(RGB)×768 , WXGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 344.232×193.536 mm |
| describir | 359.3×209.5×5.5 mm |
| estilo de forma | Wedge (PCBA Bent, Depth ≥5.2mm) |
| superficie | Glare (Haze 0%), Hard coating (3H) |
| brillo | 220 cd/m² (Typ.) |
| relación de contraste | 500:1 (Typ.) |
| mostrar colores | 262K (6-bit), CIE193160% |
| tiempo de respuesta | |
| ángulo de visión | 45/45/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 4S1PWLEDEmbedded (LED Driver) |
| interfaz de señal | LVDS (1 ch, 6-bit), 40 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | NBPC |
| LTN156AT01-A01 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-A04 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-D04 | Samsung | 15.6 | 1366×768 |
| LTN156AT05-B01 | Samsung | 15.6 | 1366×768 |
| LTN156AT11-A01 | Samsung | 15.6 | 1366×768 |
| LTN156AT16-401 | Samsung | 15.6 | 1366×768 |
| LTN156AT20-P02 | Samsung | 15.6 | 1366×768 |
| LTN156AT24-P01 | Samsung | 15.6 | 1366×768 |
| LTN156AT29-L01 | Samsung | 15.6 | 1366×768 |
| LTN156AT34-D01 | Samsung | 15.6 | 1366×768 |
| AA121SJ23 | Mitsubishi | 12.1 | 800×600 |
| B121EW01 V1 | AUO | 12.1 | 1280×800 |
| B133XW07 V2 | AUO | 13.3 | 1366×768 |
| CLAA141WB11 | CPT | 14.1 | 1280×800 |
| HB140WX1-300 | BOE | 14.0 | 1366×768 |
| LP129QE1-SPA1 | LG Display | 12.9 | 2560×1700 |
| LTN133AT17-H01 | Samsung | 13.3 | 1366×768 |
| LTN140AT07-W01 | Samsung | 14.0 | 1366×768 |
| LTN150XG-L02 | Samsung | 15.0 | 1024×768 |
| LTN156AT20-W01 | Samsung | 15.6 | 1366×768 |
