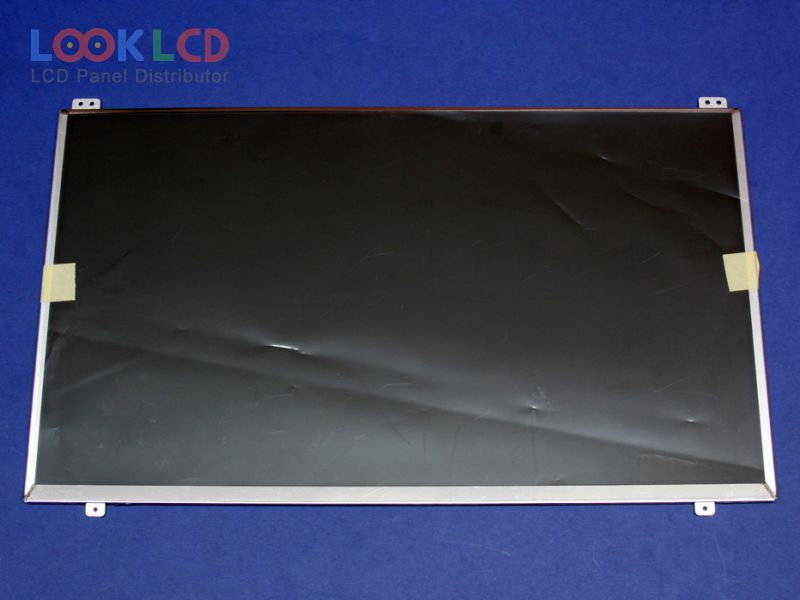

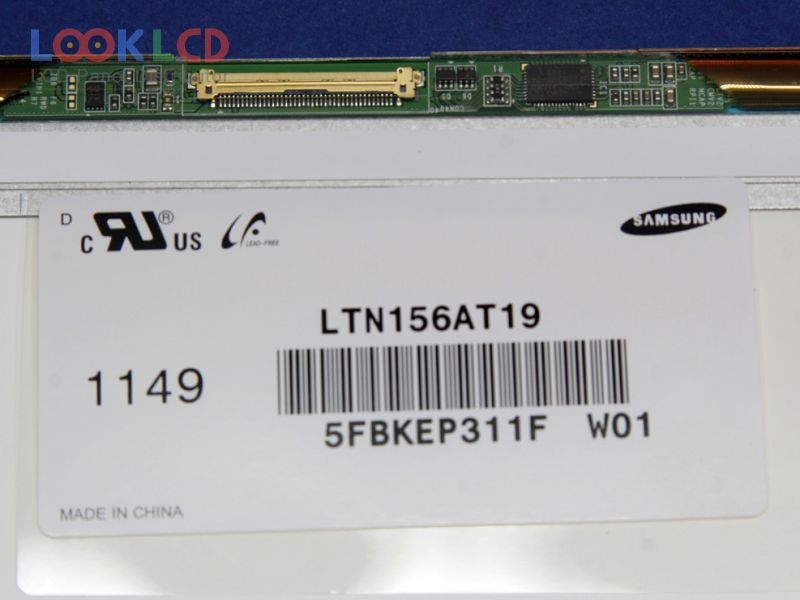

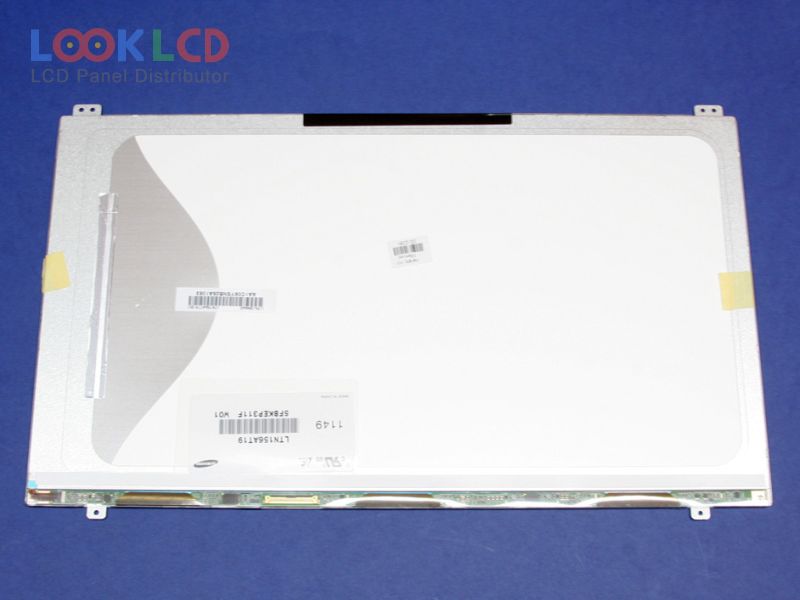

| Número de pieza | LTN156AT19-W01 |
| Marca | Samsung |
| Tamaño | 15.6 |
| Solicitud | NBPC |
| Resolución | 1366×768 |
| Composición | LCM |
| Brillo | 220 |
| CR | 300:1 |
| Colores | 262K |
| Iluminar desde el fondo | WLED |
| Interfaz | LVDS |
| marca de paneles | SAMSUNG |
| modelo de panel | LTN156AT19-W01 3 Compatible model |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 15.6 inch |
| resolución | 1366(RGB)×768 , WXGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 344.232×193.536 mm |
| describir | 359.3×222.45×4 mm |
| estilo de forma | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| superficie | Antiglare (Haze 25%), Hard coating (2H) |
| brillo | 220 cd/m² (Typ.) |
| relación de contraste | 300:1 (Min.) |
| mostrar colores | 262K (6-bit), CIE193145% |
| tiempo de respuesta | 16 (Typ.)(Tr+Td) |
| ángulo de visión | 45/45/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 9S4PWLEDEmbedded (LED Driver) |
| interfaz de señal | LVDS (1 ch, 6-bit), 40 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | NBPC |
