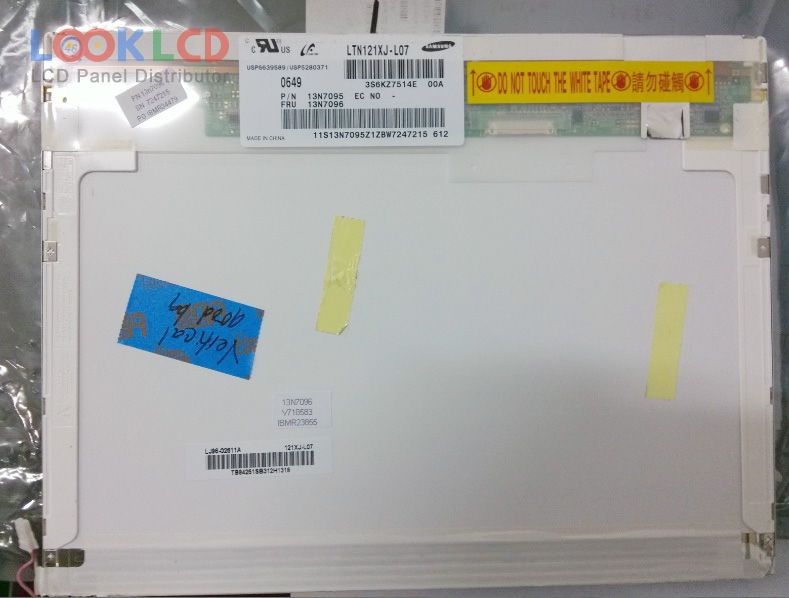

| Número de pieza | LTN121XJ-L07 |
| Marca | Samsung |
| Tamaño | 12.1 |
| Solicitud | NBPC |
| Resolución | 1024×768 |
| Composición | LCM |
| Brillo | 150 |
| CR | 300:1 |
| Colores | 262K |
| Iluminar desde el fondo | CCFL |
| Interfaz | LVDS |
| marca de paneles | SAMSUNG |
| modelo de panel | LTN121XJ-L07 6 Compatible model |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 12.1 inch |
| resolución | 1024(RGB)×768 , XGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 245.76×184.32 mm |
| describir | 261×198×5 mm |
| superficie | Antiglare (Haze 40%), Hard coating (2H) |
| brillo | 150 cd/m² (Typ.) |
| relación de contraste | 300:1 (Min.) |
| mostrar colores | 262K (6-bit) |
| tiempo de respuesta | 40 (Typ.)(Tr+Td) |
| ángulo de visión | 40/40/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 1 pcsCCFLWithout Driver |
| interfaz de señal | LVDS (1 ch, 6-bit), 20 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | NBPC |
