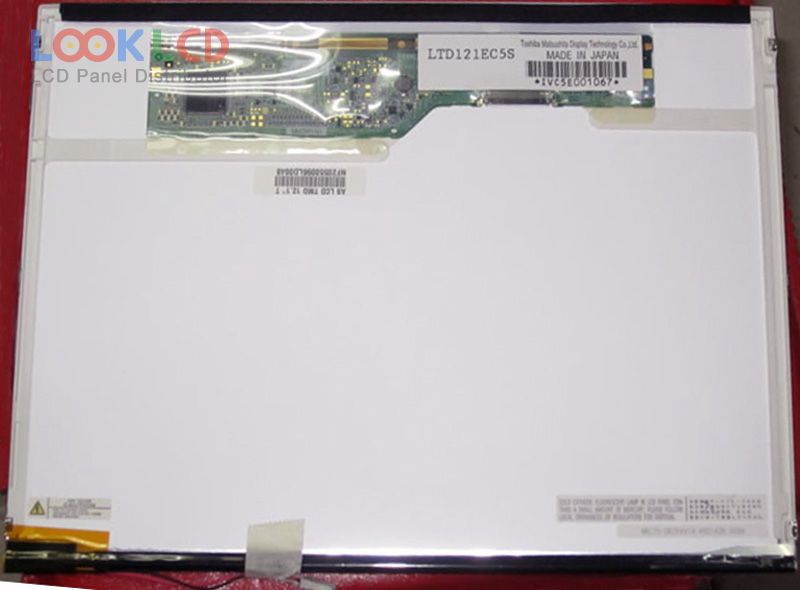

| Número de pieza | LTD121EC5S |
| Marca | TOSHIBA |
| Tamaño | 12.1 |
| Solicitud | NBPC |
| Resolución | 1024×768 |
| Composición | LCM |
| Brillo | 200 |
| CR | 250:1 |
| Colores | 262K |
| Iluminar desde el fondo | CCFL |
| Interfaz | LVDS |
| marca de paneles | Toshiba Matsushita |
| modelo de panel | LTD121EC5S 6 Compatible model |
| tipo de panel | LTPS TFT-LCD , LCM |
| Tamaño del panel | 12.1 inch |
| resolución | 1024(RGB)×768 , XGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 245.76×184.32 mm |
| describir | 261×199×5 mm |
| superficie | |
| brillo | 200 cd/m² (Typ.) |
| relación de contraste | 250:1 (Typ.) |
| mostrar colores | 262K (6-bit) |
| tiempo de respuesta | 25/25 (Max.)(Tr/Td) |
| ángulo de visión | 30/30/10/20 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 1 pcsCCFLWithout Driver |
| interfaz de señal | LVDS (1 ch, 6-bit), 20 pins |
| voltaje de entrada | 3.3V (Typ.) |
| rohs: | |
| solicitud | NBPC |
