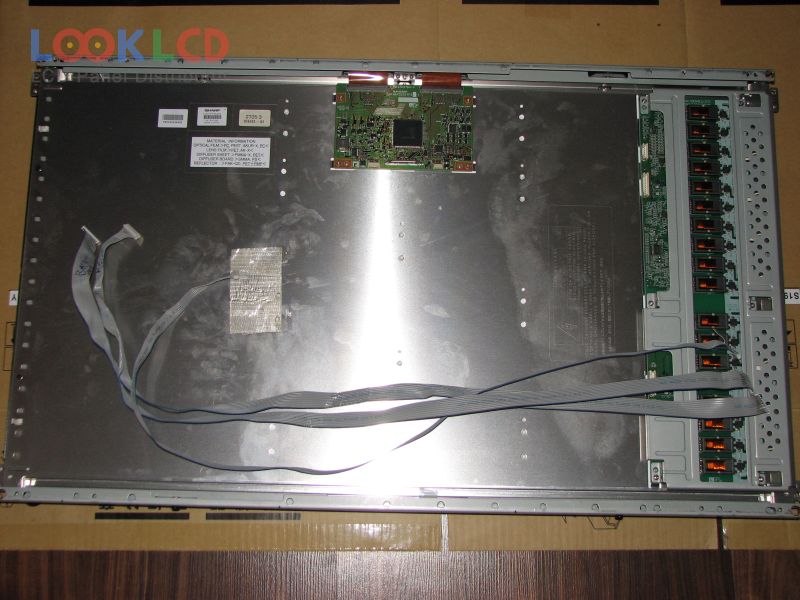

| Número de pieza | LQ315T3LZ23 |
| Marca | SHARP |
| Tamaño | 31.5 |
| Solicitud | LCTV |
| Resolución | 1366×768 |
| Composición | LCM |
| Brillo | 500 |
| CR | 800:1 |
| Colores | 16.7M |
| Iluminar desde el fondo | CCFL |
| Interfaz | LVDS |
| marca de paneles | SHARP |

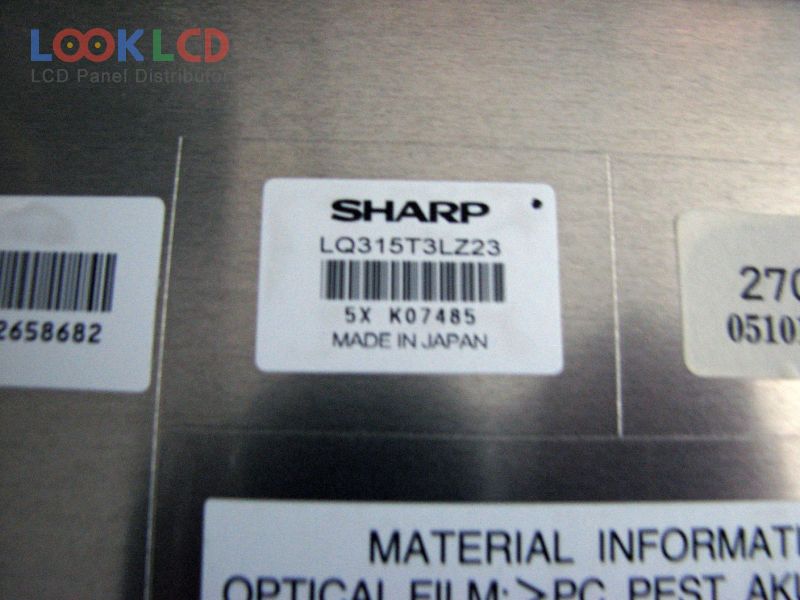

| modelo de panel | LQ315T3LZ23 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 31.5 inch |
| resolución | 1366(RGB)×768 , WXGA |
| modo de visualización | Normally Black, Transmissive |
| área activa | 697.685×392.256 mm |
| describir | 780×450 mm |
| superficie | Antiglare (Haze 23%), Hard coating (2H), Antireflection |
| brillo | 500 cd/m² (Typ.) |
| relación de contraste | 800:1 (Typ.) |
| mostrar colores | 16.7M (8-bit), CIE193173% |
| tiempo de respuesta | 12/12 (Typ.)(Tr/Td) |
| ángulo de visión | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |

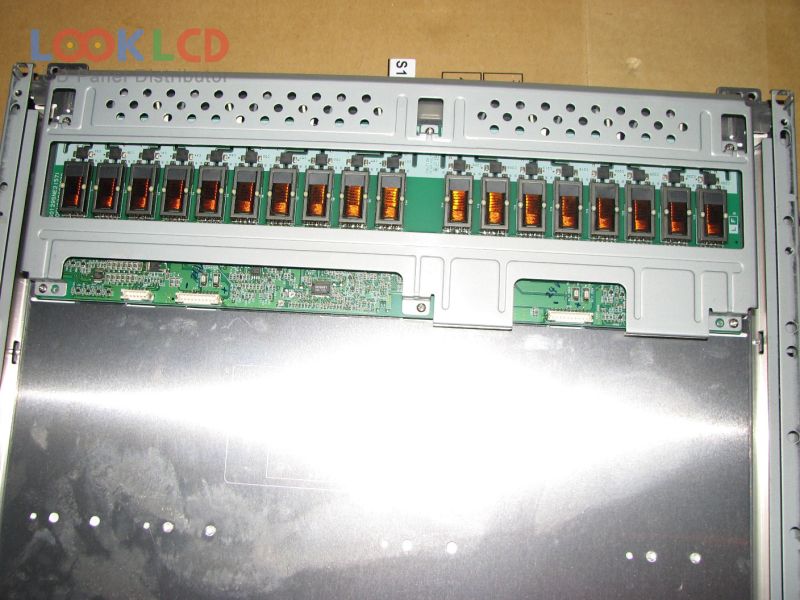

| tipo de lámpara | 18 pcsCCFLEmbedded (Inverter) |
| interfaz de señal | LVDS (1 ch, 8-bit), 37 pins |
| voltaje de entrada | 5.0V (Typ.) |
| solicitud | LCTV |
