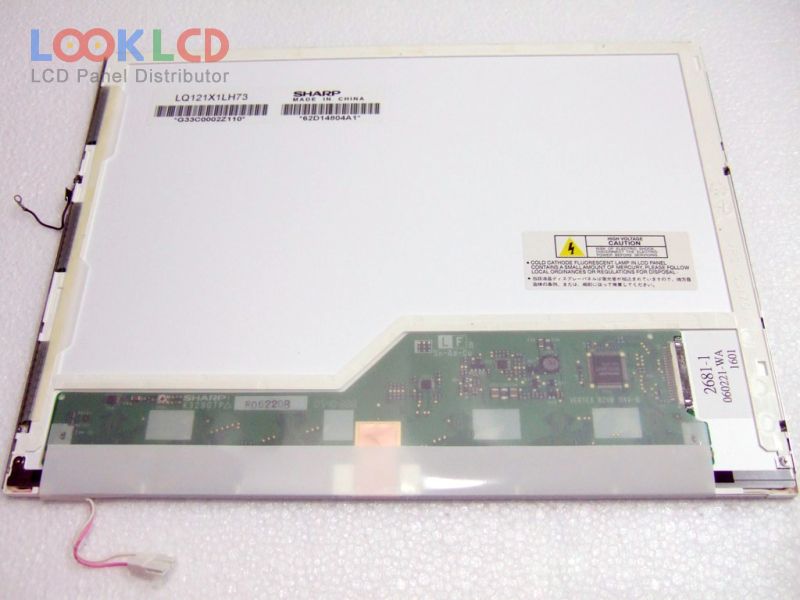

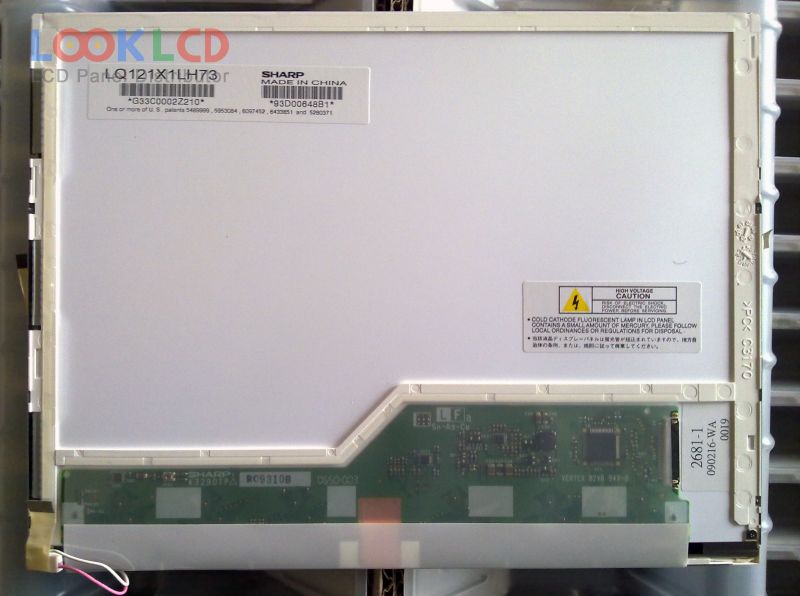

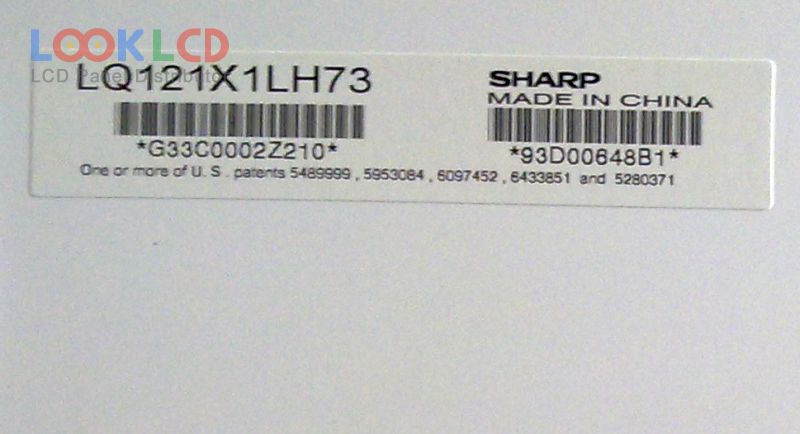

| Número de pieza | LQ121X1LH73 |
| Marca | SHARP |
| Tamaño | 12.1 |
| Solicitud | NBPC |
| Resolución | 1024×768 |
| Composición | LCM |
| Brillo | 200 |
| CR | 300:1 |
| Colores | 262K |
| Iluminar desde el fondo | CCFL |
| Interfaz | LVDS |
| marca de paneles | SHARP |
| modelo de panel | LQ121X1LH73 |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 12.1 inch |
| resolución | 1024(RGB)×768 , XGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 245.76×184.32 mm |
| describir | 260×197.5 mm |
| superficie | Antiglare, Hard coating (2H), Antireflection |
| brillo | 200 cd/m² (Typ.) |
| relación de contraste | 300:1 (Typ.) |
| mostrar colores | 262K (6-bit) |
| tiempo de respuesta | 30 (Typ.)(Tr+Td) |
| ángulo de visión | 45/45/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frecuencia | 60Hz |
| tipo de lámpara | 1 pcsCCFLWithout Driver |
| interfaz de señal | LVDS (1 ch, 6-bit), 20 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | NBPC |
