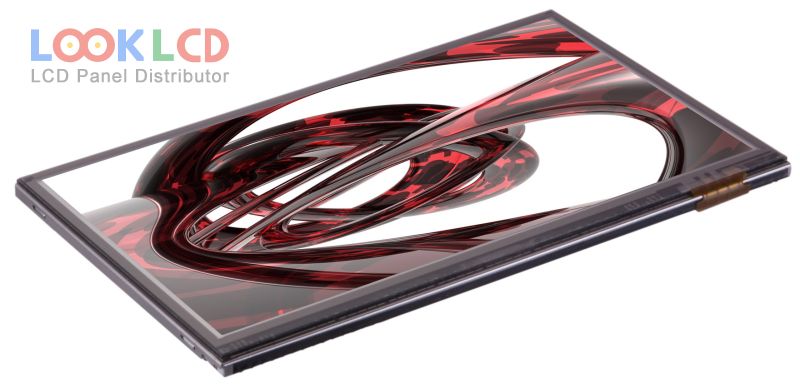

| Número de pieza | LQ050W1LA0A |
| Marca | SHARP |
| Tamaño | 5.0 |
| Solicitud | UMPC |
| Resolución | 1024×600 |
| Composición | LCM |
| Brillo | 350 |
| CR | 450:1 |
| Colores | 262K |
| Iluminar desde el fondo | WLED |
| Interfaz | LVDS |
| marca de paneles | SHARP |
| modelo de panel | LQ050W1LA0A |
| tipo de panel | a-Si TFT-LCD , LCM |
| Tamaño del panel | 5.0 inch |
| resolución | 1024(RGB)×600 , WSVGA |
| modo de visualización | TN, Normally White, Transmissive |
| área activa | 109.1×63.9 mm |
| describir | 119×76.3×5.6 mm |
| superficie | Antiglare, Hard coating (2H) |
| brillo | 350 cd/m² (Typ.) |
| relación de contraste | 450:1 (Typ.) |
| mostrar colores | 262K (6-bit) |
| tiempo de respuesta | 30 (Typ.)(Tr+Td) |
| ángulo de visión | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| tipo de lámpara | WLEDEmbedded (LED Driver) |
| interfaz de señal | LVDS (1 ch, 6-bit), 30 pins |
| voltaje de entrada | 3.3V (Typ.) |
| solicitud | UMPC |
| LQ050A3AD01 | SHARP | 5.0 | 320×234 |
| LQ050A5BS01 | SHARP | 5.0 | 320×234 |
| LQ050A5BS02 | SHARP | 5.0 | 320×234 |
| LQ050Q5DR01 | SHARP | 5.0 | 320×240 |
| LQ050T1SX02 | SHARP | 5.0 | 1080×1920 |
| LQ050T1SX05(G) | SHARP | 5.0 | 1080×1920 |
| LQ050T3GG01 | SHARP | 5.0 | 400×234 |
| LQ050T5DG01 | SHARP | 5.0 | 400×240 |
| LQ050T5DW02 | SHARP | 5.0 | 400×240 |
| LQ050W1LA0A | SHARP | 5.0 | 1024×600 |
| HJ070IA-02F | Innolux | 7.0 | 1280×800 |
| HV056WX1-100 | HYDIS | 5.6 | 1280×800 |
| HV070WSA-100 | BOE | 7.0 | 1024×600 |
| LD070WS1-SL02 | LG Display | 7.0 | 1024×600 |
| LD070WS2-SL01 | LG Display | 7.0 | 1024×600 |
| LD070WS2-SL03 | LG Display | 7.0 | 1024×600 |
| LD070WS2-SL07 | LG Display | 7.0 | 1024×600 |
| LT080EE04100 | TOSHIBA | 8.0 | 1600×768 |
| LTD056ET0S | TOSHIBA | 5.6 | 1024×600 |
| N070Y1-T01 | Innolux | 7.0 | 800×480 |
